Multiple Size Changeable 41*41mm U Channel C Type Photovoltaic Support Cold Roll Forming Machine

Product Description

Solar photovoltaic bracket roll forming machine is a full automatic line to produce the solar photovoltaic bracket strut ,which is a special bracket designed for placing, installing and fixing solar panels in solar photovoltaic power generation system. General materials include aluminum alloy, carbon steel and stainless steel.The products related to solar support system are made of carbon steel and stainless steel. The surface of carbon steel is hot-dip galvanized and will not rust after 30 years of outdoor use. The solar photovoltaic support system is characterized by no welding, no drilling, 100% adjustable and 100% reusable
Product Description

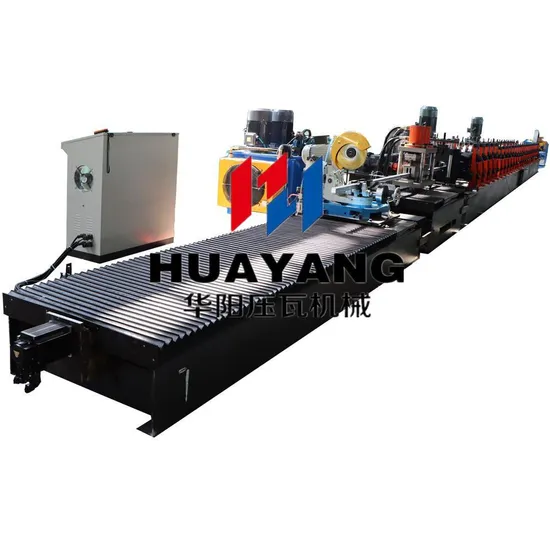

Solar photovoltaic bracket roll forming machine is a full automatic line include the decoiler ,leveling and feeding device ,roll forming machine ,straightening device ,tracking cutter system ,electric output table .the whole line is about 35meters ,the normal size it can produce - 41*41/41*52/41*62/41*72,thickness 2-3mm ,can be also customized.

Product Details
Solar photovoltaic bracket roll forming machine details: Feeding material: Q195 / Q235 steel strip and galvanized coil
Thickness of the plate:2-3mm
Diameter of the axle :Φ80mm
Rolling stages:23stages
Productivity: 15-20m/min
Total power: 30 kw machine motor
Voltage:380V 50Hz 3phase or as requirement
Side board:20mm
Cutting blade: Cr12 with heat treatment
Cutting system: cutting system after forming
the Components Solar photovoltaic bracket roll forming machine :

NO.	Name	Unit	Qty
1	manual Decoiler	Set	1
2	leveling and feeding device	set	1
3	roll forming machine	set	1
4	electric system	set	1
5	tracking cutting system	set	1
6	punching machine	set	1
7	output table	set	1

Applications
Related Products
if thickness is 2-2.5mm,can choose below type roll forming machine
Our Certifications
CUSTOMER FEEDBACK
Company Profile

Stud/ track/truss/furring frame roll forming machine, rolling shutter machine, door frame machine, high frequency tube welded forming machine, gutter machine, downpipe machine, floor deck machine and etc. Sticking to the principle of"Quality is our culture". We can design according to our customers' requirements and we will do our best to meet your needs.
We treat all customers as friend ,before purchasing ,we guide our customer to choose suit machine .after purchase,we supply effective after-sale service .We still try our best to let all customers satisfied not only our machine quality but also our service .
FAQ
A:- What is your payment term?
- 30% of the total payment should be paid as deposit ,the balanced should be paid after check the finished photos and videos well ,we supply test report.
B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
D:- What is the after- sale service?
- 24 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the
quality guarantee period, only charge the production cost of the spare parts.Free technical supporting and maintenance consulting in lifetime.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the
quality guarantee period, only charge the production cost of the spare parts.Free technical supporting and maintenance consulting in lifetime.
E:-Can you accept OEM?
- We can accept OEM

---
