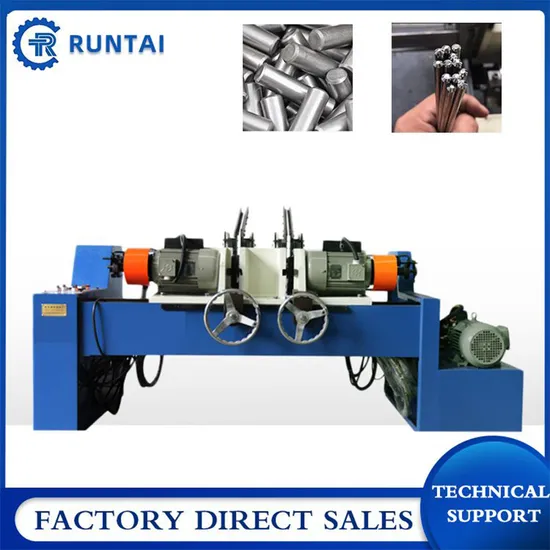

Metal Chamfering Machine Rod Chamfering Machine Short Chamfering Machine

Product Description

Characteristics:
1. Can finish internal angle, external angle and pipe end at one time.
2. Automatic clamping, automatic blades penetrating and returning, fast speed, big capacity, high efficiency, convenient operation, easy learning and understanding.
3. The speed of main shaft blade penetrating can be adjusted, fast speed and work speed functions are available.
4. In accordance with chamfering processing of work pieces of different size, only need to change the clamp fixtures and adjust the blade bed.
Specifications:

Technical parameters	RT-SM
Pipe diameter capability	Φ10~Φ100mm
The length of chamfer working piece	90~500mm (the customized type can process the one less than 60mm and more than 500mm)
Rotation speed	800/1200
Main motor	3.5kw
Pneumatic pressure	0.6~0.8Mpa
Suitable material	Carbon steel, stainless steel, aluminum, copper (pipe and iron bar)
Size	2000×1000×850mm
Weight	About 600kg

Company Details
Professional: 10 years into machinery.
Brand: RUNTAI, China Famous Brand
Engineers: 9 professional and experienced engineers
Certificates: CE, ISO9001:2008
Letters patents: 12 official patents
Examining report: 5 official examining reports
Innovation project: 2 innovative program awards
Exported Countries: South Africa, India, Australia, Russia, UK, Mexico, Ukraine etc
Trade information:
FOB Shanghai, CIF your port
Payment Terms: T/T, L/C
Delivery Terms: 30% deposit, 70% paid before shipment.
Delivery Time: 30days after receiving deposit
Minimum Order Quantity: 1 set
Warranty: 1 year
Package Details: wooden box
Supply Ability: 30 Sets per Month
Free Sample: No
Contact:
Contact person: Jackie He

Notes:
If you have any doubts about this machine, please contact me through below e-mail addresss.

---
