CE Automatic Milk/Spice/Flour/Washing Powder Vertical Packing Machine with Auger Filler

US$7,000.00-15,000.00 1 Set (MOQ)

Basic Info.

Model NO.
ZH-BA
Automatic Grade
Automatic
Application
Rice, Flour, Milk Powder, Washing Powder,Flour,Spice
Type
Forming Filling Sealing Machine
Forming Species
Bag Moulding
Forming Function
Forming, Filling, Seal
Driven Type
Pneumatic
Material Type
Powder
Packaging
Bag
Packaging Material
Film
Machine Name
Powder Packing Machine
Bag Type
Pillow Bag / Gusset Bag
Weighing Range
10-5000g
Accuracy
0.5%
Machine Material
304ss
Transport Package
Wooden Case
Trademark
ZON-PACK
Origin
China
HS Code
8422303090
Production Capacity
120 Sets/Month

Packaging & Delivery

Package Size
400.00cm * 250.00cm * 360.00cm
Package Gross Weight
2000.000kg

Product Description

Application
The powder vertical packing machine is suitable for packing powder product such as milk powder, wheat flour, coffee powder, tea powder, bean powder.
TECHNICAL SPECIFICATION
ModelZH-BA
System output≥4.8 Ton/Day
Packing speed 10-40 Bags/Min
Packing accuracy± 0.5%-1%
Bag size(mm)(W) 60-200 (L)60-300 For 420VFFS
(W) 90-250 (L)80-350 For 520VFFS(W) 100-300 (L)100-400 For 620VFFS(W) 120-350 (L)100-450 For 720VFFS
Bag typePillow bag, standing bag (gusseted), Four edge sealing bag
Range of measuring (g)10-5000
Thickness of film (mm)0.04-0.10
Packing Materiallaminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET,
Products Images
Technical Feature.
1.Powder conveying,meeuring,filling,bags making,date printing,finished bags outputting are completed automatically
2.High measuring accuarcy and efficiency.
3.Easy to operate and save workers
4.Packing efficiency will be high with machines.

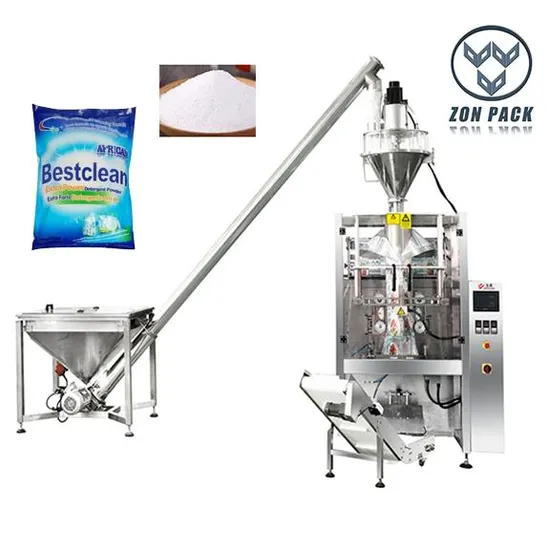

Machine list of this system.
1.Screw conveyor or Vaccum conveyor
2.Auger filler for measring weight
3.VFFS for forming bag,printing date and sealing
4.Finshed bags conveyor for bags output
5.Rotary table for collecting finshed bags
Screw conveyor.
It is for convey powder to auger fillerVertical packing machineIt is for forming pillow bag,gusset bag,four edge bags and fill powder from auger filler.Printing date,sealing and cutting.We have 320VFFS, 420VFFS, 520VFFS, 620VFFS, 720VFFS, 1050VFFS for option
