12/24/36/48VDC Brush Motor IP65 Industrial Linear Actuator Brush Motordc Gear Motor Waterproof

Product Description

Specification of linear actuator : HB-DJ808

Brand Name	HB
Model Number	HB-DJ808
Input	12v/24v/36v/48vDC
Max load	7000N
Duty cycle	25%
Speed	5-3 5 mm/s
Stroke	50~600mm( optional)
Min installation Dimension	L(ACME)=250mm+S
Operation Temperature	-40 to + 6 5 certigrade
IP class	IP65
Limit switch	Inner
Option al Parts	Potentiometer feedback /overload clutch protection
Certificate	CE , ISO9001
Material	Inner tube stainless steel, outer tube aluminum alloy
Covering color	Black
Place of Origin	Jiangsu, China

Product Description

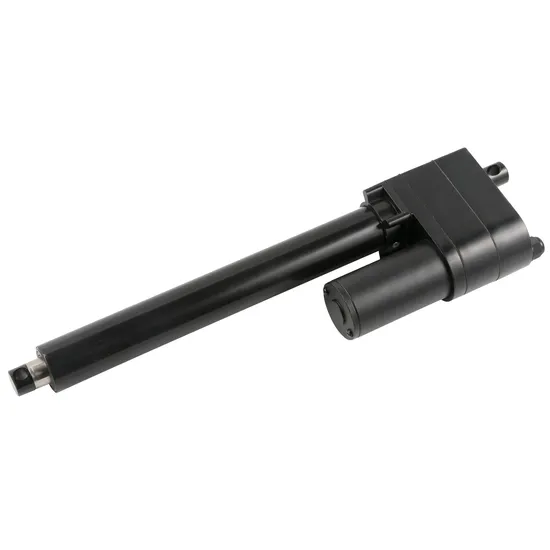

HB-DJ808 is a gear-driven electric linear actuator. With its waterproof, dust resistant qualities, firm structure, wide range of working temperature and high load capacity, it can be applied to various kinds of indusrial transmisson solutions, without worrying the harsh working environment. Temperature protection and overload clutch ptrotection are installed to guatantee the service life of the product. And this product is maintenance free.
What's more, potentiometer feedback is optional, which can help you to control the actuator accuratly
Packaging and Delivery of Linear Actuator:
Packaging details: 2 PCS/CTN
Delivery detains: 10days after payment
Transportation on linear actuator:
1. All available shipping ways could be applied, by courier, air or sea. Fast Delivery, Shipping direct from China to major destinations (Europe, US, Australia, etc. ) typically takes only 5-to-10 day via DHL/TNT/UPS/FedEx/EMS, Or container by Sea.
2. Appointed shipping company or our own forwarders both could be used in shipment.
3. Full-way tracking the cargos for you before the goods arrive.
About us
HB is the leading expert in electric linear actuator systems for many years. We aim to provide innovative solutions that will improve your life. Linear actuators from HB are high-quality actuators with a long life and little or no maintenance. A linear actuator can be integrated in sophisticated control systems which provide precise position feedback and accurate control of the actuator. The products we produce are widely used in medical, industrial, household and office fields, such as electric sofas, massage chairs, dental chairs, etc. Our products have passed QMS ISO9001 and Cert. CE. With strict quality control and customer-oriented service spirit, we can help you optimise productions and minimise costs.
More linear actuators for you choose:
We supply linear actuator worldwide for many applications including but not limited to: Robotic Vehicles Automatic Guidance Vehicles Camper Led car, arrow board trail Door Openers Floor Cleaning Equipment Lawn Mover Snow plough Boat Solar tracker system Wheelchairs Harvesting machine Construction machine
Electric actuators can be easily integrated with most systems and requirements.
They are able to withstand outdoor elements with very little maintenance.
Looking for a customized solution? Contact our sales team today!
