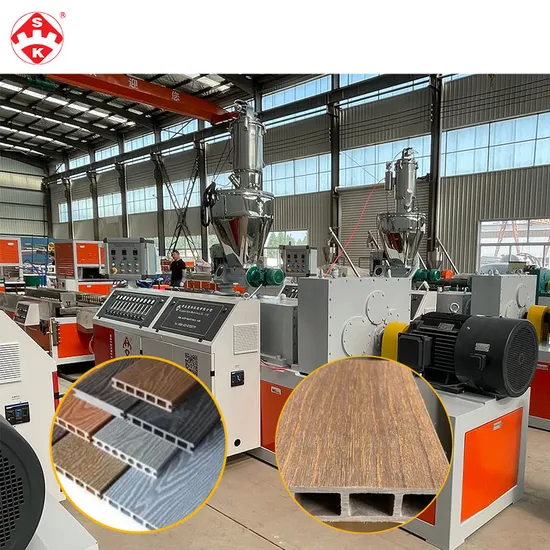

WPC Wood Plastic Decking Flooring Outdoor Panel Extrusion Production Machine Line

Product Description

PVC/PE WPC Wood Plastic Profile Decking Flooring Slatwall Panel Board Making Extrusion Extruder
MACHINE INTRODUCTION:
We adopt abroad advanced technique and the news craftwork. It is main used for wood-plastic floor production line. The thickness of floor: 5-15mm, width: 100-300mm.
Multi matching parts of this line are used name brand product in the world. Combining our many years' experience, we make this line more reliable and perfect.
The floor which produced by this line, has may advantages. Such as smooth and clean suface, anti-corrupt, fire-proof, water-proof, high insulation and so on.
With special designed screw, barrel. Moule and producing process, this line can produce PE PP PVC and wood powder profile.
WPC BOARD INTRODUCTION:
1, New product:
The wood-plastic is a new kind of synthetic material through the process of mixing, exruding, calibrating, hualing off and cutting,
2, Material:
Uses PVC, PP, PE resin or recycled plastic and plant fibre ( wood powder, chaff, straw etc. ) as raw material.
3, Advantages:
This kind of wood-plastic are not only very similar with natural wood in appearance and feel, but also have the same characteristics as wood of excisable, planeable, sawable, unmatched grip, low bibulous rate, good moisture resistance, mothproof, mildew resistance, good resistance to acid and alkali, anti-corrosion, and it has the feature of fire resistance.
4, Application:
The wood-plastic products are widely used in outdoor floor, close to water construction, balcony, landscape architecture, chairs and benches, fences, interior doors and windows, furniture, etc.
MACHINE TYPE"

Items	YF180	YF240	YF300	YF600	YF900
Max.width of board(mm)	180	240	300	600	900
Extruder Model	SJZ55/110	SJZ65/132		SJZ80/156	SJZ92/188
Mian motor power(KW)	22	37		55	110
Drawing height(mm)	150	150	150	150	150
Drawing speed(KN)	20	20	20	30	40
Drawing speed(m/s)	0-5	0-5	0-5	0-3	0-2.5
Auxiliary equipment sum power(kw)	35	35	30	30	40
Cooling water consume(m3/h)	6	6	6	9	12
Compression air(Mpa)	0.6	0.6	0.6	0.6	0.6

MACHINE FEATURES:
Conical Twin Screw Extruder:
Adopting specially screw designs according to different materials make the high polymer micro-foam uniform plasticization, high extrusion. Imported famous brands AC inverter makes the rotation speed stable to ensure the main extruder and accessory machines move synchronously.
Vacuum calibrating table:
Adopts powerful turbo cooling system, easy to achieve satisfactory cooling effect. According to different moulds and different customer requirements, the vacuum calibrating table can be optional as 4m, 6m.
Haul off machine:
Adopts special lifting technology, and has the features of stable running, reliable working, powerful hauling etc,
Cutting machine:
the moving speed of the cutting unit is synchronized with hauling speed. Through prseting,the cutting unit is capable for automatic cutting with fixed length. Dust recycling device is also equipped.
PRODUCTION PROCESS FLOW
Raw materials--- Mixing --- Feeding --- Extruding ---Molding --- Calibrating --- Haul-off --- Cutting--- Stacking--- Printing or Hot stamping(optional) --- Package.
EQUIPMENT LIST:
Double Screw Extruder 1 unit
Mould 1 set
Shaping Machine 1 unit
Haul-off Machine 1 unit
Cutting Machine 1 unit
Stacker 1 unit
Optional Auxiliary Machine;
Crusher 1 unit
Mixer 1 unit
Pulverizer 1 unit
Air Compressor 1 unit
MACHINE TYPE

Model		SJSZ -51/105	SJSZ-65/132
Screw dia	mm	51/105	65/132
Screw quantity	Piece	2	3
Rotational speed	r/min	1-40	1-38
Main extruder power	KW	15	37
Heating power(approx)	KW	8	24
Extrusion output	kg/h	60-150	100-250

---
