Description:

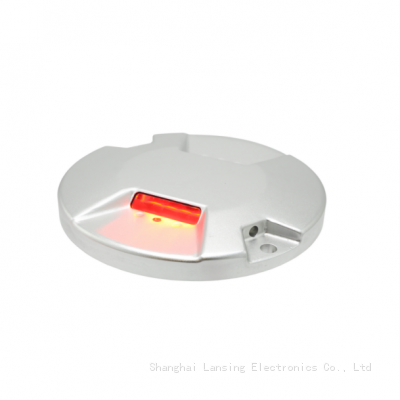

Our JCL270 LED inset runway end light is engineered with high-quality LED technology,delivering superior brightness and clarity in all weather conditions. The durable construction and advanced optics ensure maximum visibility from the air and the ground, making it an essential component for airport safety and efficiency.
With its sleek and low-profile design, the light seamlessly integrates into the runway surface, minimizing obstruction and reducing maintenance efforts. The robust housing and sealed optics are built to withstand the rigors of constant exposure to environmental
elements, ensuring long-term reliability and performance.
Featuring a simple yet effective installation process, our JCL270 inset runway end light can be easily retrofitted into existing runway infrastructure, allowing for a cost-effective upgrade to modern lighting standards. The low power consumption and extended
operational lifespan of the LED technology offer significant energy savings and reduced maintenance expenses for airport operators.
In addition to its exceptional performance and durability, the fixture is fully compliant with ICAO standards and regulations. It is precision-engineered to provide accurate alignment and guidance for pilots, contributing to the overall safety and efficiency of air
traffic operations.
Designed to meet the harsh environment the fixtures will operate in a temperature range of -55 °C to +55°C (-67 °F to +131°F) and has an ingress protection of IP68.
Features& Benefits:
• Improved optics enhance photometrics and assure optimum LED life.
• New prism deflector design uses a specially designed optical window with chamfered corners helps to prevent damage from snowplows and other equipment rolling over the fixture.
• Reduced bottom pan profile allows for a very shallow base can installation.
• Improved mechanical design strengthens and consolidates components, improving the customer maintenance experience.
• Low profile (Style 3) with no negative slope in prism window, preventing debris from obscuring prism.
• Reinforced top cover enhances durability and longevity.
• Lightweight and robust due to its aluminium alloy construction .
• Robust SO style cord set protects against insulation damage and‘water wicking’.
• Extra-large bolt opening, lifting hole and pry slot ease maintenance and torquing.
• Low energy consumption compared with the tungsten halogen equivalent.
• Greatly reduced maintenance: calculated MTBF of 75,000 hours at 6.6A.
• Operates on the full range of 2.8A to 6.6A on CCRs that are designed in compliance with IEC or FAA requirements.
• Fully dimmable lights, replicating the response curve of traditional halogen lights.
• Full compatibility with existing airfield lighting series circuits.
• Installation on same mounting device as most conventional lights, for a straightforward replacement.
• Monitoring function of the individual light arrays for open circuit, short circuit, and over temperature.
• The LED light automatically disconnects from the secondary side of the isolation transformer,resulting in an open circuit condition.
• All fasteners are stainless steel
• FAA style 3, ICAO style 4 fixture with a 3.5 mm profile above gradient.
• L-823 connectors .
• Integral surge protection.
Specifications
Structure:
Photometric Data
Mounting Dimension(mm)
>>
