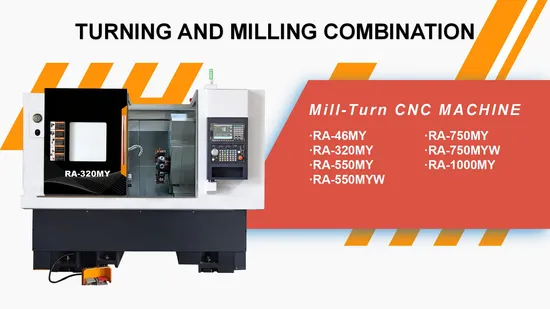

High Precision Exceptional Accuracy and Efficiency 3/4axis CNC Mill-Turn Lathe Machine Center

Product Description

High Precision Exceptional Accuracy and Efficiency 3/4Axis CNC Mill-Turn Lathe Machine Center
Product Description

Processing Capability			Unit	RA-320MY
Processing Capability	Maximum bed swivel diameter		mm	Φ500
	Maximum machining diameter		mm	350
	Maximum machining diameter on the tool holder		mm	Φ220
	Maximum processing length		mm	300
	Maximum bar through-hole diameter		mm	46
Machining dimensions will change with turret selection.
Spindle	Nose of spindle		ASA	A2-5
	Spindle through-hole diameter		mm	Φ56
	Maximum spindle speed		rpm	4500
	Hydraulic cylinders/chucks		Inch	6''
Axis feed	Axis travel	X-Axis	mm	250
		Z-Axis	mm	400
		Y-Axis	mm	±35
	Travel Speed	X-Axis	mm	24
		Z-Axis	mm	24
		Y-Axis	mm	10
	Rail Type		/	Linear track 35 (ball)
Turret	Number of tool positions		pcs	BMT40-12T with Y-axis
	OD tool holder specifications		mm	25x25
	I.D. Tool Holder Specifications		mm	Φ32
Tailstock	Hard rail as standard		/	Z-axis driven
	Maximum travel of tailstock rail		mm	350
	Tailstock Sleeve Taper		mm	Morse #4
	Tailstock Sleeve Diameter		mm	Φ60
	Tailstock sleeve travel		mm	80

• High-precision machining: The High Precision Vertical CNC Machining Center by Dongguan Luotuo Industrial Co., Ltd is engineered to meet the highest standards of machining precision. This advanced machine tool excels in delivering exceptionally fine cutting results, ensuring superior internal and external precision, impeccable roundness, perfect coaxiality, and more.
• Multiple processes: This versatile machine is capable of executing a diverse range of complex and multifaceted processing procedures simultaneously. From various radial and axial cutting to intricate drilling, tapping, hobbing, scribing, and drawing, the CNC Machining Center handles them all with unmatched efficiency.
• Clamping and positioning the workpiece:
The primary task of the gripper is to securely hold the workpiece in place, ensuring that its position remains absolutely stable throughout the machining process.
Through precise positioning, the gripper ensures the accurate relative position of the workpiece to the cutting tool, safeguarding the integrity of machining accuracy.
• Solve special clamping problems:
For machining holes, shafts, slots, and threads in non-bushing and non-wheeled parts, specialized fixtures provide innovative solutions.
Specialized fixtures are meticulously designed to address specific workpiece machining requirements, effectively resolving clamping challenges that conventional fixtures are unable to manage.

Optional accessories:

Oil-water separator

Oil Mist Absorber

Fully automatic feeding machine

Electric cabinet air conditioner

Rotatable window

Workpiece probes

High pressure water pumps

Chip conveyor

Tool setting arm

Detailed Photos
Control System
Anoher Advantages
• Optimal processing conditions and a superior production environment, ensuring your production line operates at peak efficiency.
Our imported horizontal machining center, vertical machining center, CNC boring machine (featuring a rotating table), and gantry guideway grinding machine guarantee exceptional workpiece accuracy. These advanced machines significantly enhance assembly precision and prolong the durability of accuracy, ensuring your products meet the highest standards.
• Cutting-Edge Detection Methods
Positioning accuracy is meticulously tested and finely adjusted using state-of-the-art laser technology, adhering strictly to the rigorous German VDI3411 inspection specification (5 tests each).
Every machine tool undergoes stringent processing tests before leaving the factory. This rigorous testing guarantees they not only meet but exceed your actual processing accuracy requirements, providing unmatched reliability and performance.
Product sample
• This state-of-the-art CNC machining center seamlessly integrates the functionalities of milling, drilling, and tapping, ensuring unparalleled precision and efficiency.
• Expertly engineered to handle CNC machining of an array of materials, including aluminum, steel, copper, and various non-metal materials, our machine offers unmatched versatility.
• Perfectly suited for a broad spectrum of industries, our machine excels in 3C electronics, rail transportation, aerospace, and the manufacturing of linear module guide rails.
Packaging & Shipping
•Highly Protective: Ensuring that your High Precision Vertical CNC Machining Center is safeguarded during transit with top-notch packaging solutions.
•Structural Stability: Designed to maintain the integrity of the machine, guaranteeing a steady and reliable performance over time.
•Environmentally Friendly and Recyclable: Our packaging materials are not just robust but also environmentally conscious, promoting sustainability and easy recyclability.
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T with a 40% initial payment upon ordering and the remaining 60% balance payment before shipment.
2. What are your trade terms?
A: We accommodate various trade terms: FOB, CFR, and CIF.
3. When is the delivery time?
A: For our standard High Precision Vertical CNC Machining Centers, we can have the machine ready within 30 days. For specialized machines, additional time might be required. Please place your order based on the delivery schedule we provide.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity (MOQ) is one set, and we offer a comprehensive one-year warranty.
5. How are the machines packaged?
A: Our machines are securely packed in robust wooden cases for safe transport.
6. How can I choose the most suitable machines?
A: Provide us with your detailed specifications, and we will recommend the optimal model for your needs. Alternatively, you may select a model based on our recommendations.
You can also share your product drawings with us, and we will identify the most suitable machines for your requirements.

---
