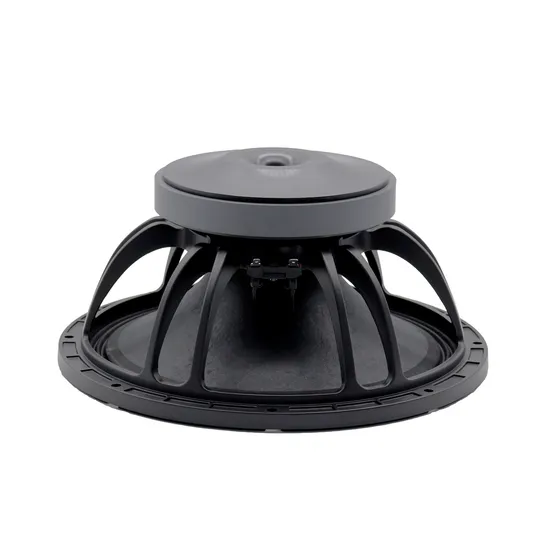

Professional Audio 14inch 76mm Voice Coil Line Array Midbass Speaker Woofer OEM

Product Description

Professional Audio 14inch 76mm Voice Coil Line Array Midbass Speaker Woofer OEM Applicable use Use for pro DJ speakers, pro PA speakers, pro karaoke speakers, live sound speakers, fixed installation speakers, studio monitors and home audio speakers. Product Paramenters

SPECIFICATIONS
TYPE	FE WOOFER
Nominal Diameter	359/14	mm/in
Rated impedance	8	ohm
Minimum Impedance	7.3	ohm
AES Power Handing	800	Watts
Peak Power Handing	1600	Watts
Sensitivity	102	dB
Frequency Range	40-3000	Hz
Voice Coil Diameter	76/3.0	mm/in
Winding Material	Copper
Former Material	Glass Fibre
Winding Depth	19/0.75	mm/in
Megnetic Gap Depth	11/0.43	mm/in
Megnetic Material	Ferrite Ring

THIELE & SMALL PARAMETERS
Resonance frequency	Fs	45	Hz
Dc resistance	Re	5.2	ohm
Mechanical factor	Qms	5.6
Electrical factor	Qes	0.22
Total factor	Qts	0.21
BL factor	Bl	24.2	T.M
Effective Moving mass	Mms	89	g
Effective Cas air load	Vas	96	liters
Effective piston area	Sd	707	cm2
Inductance	L1kHz	1.1	mh
Max linear excursion	Xmax	±7	mm
	EBP	204	Hz

MOUNTING AND SHIPPING
Overall Diameter	360/14.17	mm/in
Bolt Circle Diameter	342/13.46	mm/in
Mount Baffle Cut-out	324/12.75	mm/in
Speaker Depth	172/6.77	mm/in
Flange And Gasket Thickness	14/0.55	mm/in
N.W. (1 pc)	9.0	kg
G.W. (1 pcs)	12.0	kg
Shipping Size (1 pcs)	370x370x280 mm	14.5x14.5x11.0 in

Details Images
Welcome to CONTACT US
Company Introduction

Why choose us Have a product development and design team
Our R&D personnel have 20 years of design and development experience
Development assistance software: FINEMOTER, LMS, CLIO, COMSOL
TJ Audio Speakers is favored and recognized by customers for its high-quality products and beautiful prices. We look forward to receiving your inquiries! Customer Case
FAQ
Q1: How can I get sample?
A: If you need a sample test, please contact us. We will make it according to your requirements. But you may need to pay the sample fee and its shipping fee. Q2: How much is the shipping cost for samples?
A: Different sample have different weights and packaging sizes. Please contact us for details.
Q3: Can I print my logo on the product and packaging?
A: Of course you can. Just need you to send us your logo design and authorization documents, we will make it on the product and packaging according to your request for your confirmation.
Q4: Can you produce according to customer's design?
A: Yes. We mainly do OEM/ODM services.
Q5: How are your products packaged?
A: Generally, we pack in white boxes and brown cartons.
Q6: How to strictly control the quality of products?
A: We have strict quality control on products from raw materials to production process, and all products are tested before leaving the factory. Packing&Shipping
Packing: 1)Neutral Packing 2)Strong Carton 3)Reinforce the edge with hard paper 4)Put into another shipping carton
Shipping: 1)Ocean Transport 2)Air Transport 3)Rail Transport 4)Road Transport 5)International Express

---
