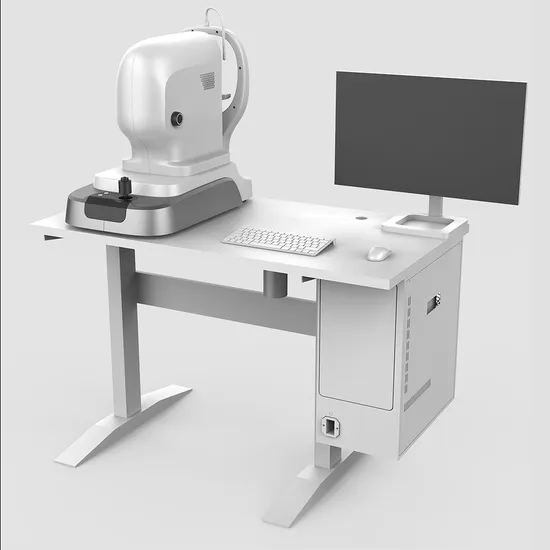

Ophthalmic Oct Equipment Optical Coherence Tomography for Life Science

Product Description

OCT (Optical Coherence Tomography) Thin Layer Imaging Detector is equipment using optical coherence tomography (OCT) technology to detect and image pearls, coatings and other thin materials, technology innovation and product performance are in a leading position both at home and abroad. Broad product application scope and wide prospect of market, it has been adopted by numerous laboratory and testing organizations.
Operating Principle:
Optical Coherence tomography (Optical Coherence Tomography, OCT) is an imaging technique rapidly developed in nearly ten years, it uses basic principle coherent of light interferometer to detect back reflection or several scattering signal to the incident weak coherent light of different depth levels. By scanning, it can get broken two-dimensional or three-dimensional structure image in real-time.
Application:
Detection of pearl, coating materials and other thin translucent materials. Imaging depth up to 3 mm in highly scattering biological tissue.
Features:
-High sensitivity and resolution: high resolution can achieve 5~15μm, clear and real image, detect data is very accurate.
-Fast detection speed: imaging rate reaches 1 picture/s, can realize real-time imaging and online detection, scanning speed of frequency-domain scanning system can reach 40000Hz/s, can realize real-time 3d imaging.
-Nondestructive no radiation: no damage to the seized material to complete the detection, and exposure to the seized material's optical power was only 1~2mW, cannot produce any damage and radiation.
-Non-contact: The probe doesn't need to contact with the surface of detection tissue.
Main Technical Parameters:
-Light wavelengths: 1300nm
-Light source power: 5mW
-Sample area light power: 1~2mW
-Vertical resolution: 20μm
-Transverse resolution: 20μm
-Scanning depth: 3mm
-Imaging velocity: 1~2p/s
-Working distance: 50~70mm
Example:
Scientific research application:
Widely used in biomedical, materials, tissue engineering, environmental monitoring, etc.
Aircraft coating detection:
To achieve the fast, nondestructive detection to plane coating.
Our Services
1.For all your inquires about us, we will reply you in detail within 24 hours.
2.We own professional team with professional attitude to recommend products and
services for you.
3.The products have one year free warranty, after which they can still be
provided after-sales service.
4. We offer OEM services. And we can print your own logo on the product.
5. We have well-experienced engineers, who can help you better use our products.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope
we can offer you more help in medical field and build the long term business
relationship with you.
FAQ
Q: How to buy your products ?
A: We have some products in stock , you can take away the products after you
arrange the payment ; If we don't have the products in stock you want, we will
start production once getting the payment.

Q: What's the warranty for the products ?
A: The free warranty is one year from the date of commissioning qualified.

Q: Can we visit your factory ?
A: Of course, welcome to visit our factory if you come to China.

Q: How long is the validity of quotation ?
A: Generally, our price is valid within one month from the date of quotation. The
price will be adjusted appropriately as the price fluctuation of raw material in
the market.

Q: What's the production date after we confirm the order ?
A: This depends on the quantity. Normally, for the mass production, we need about
one week to finish the production.
Packaging & Shipping
Packaging:Standard export corrugated paper board cartons or wooden box
Pallet: Plastic/ Wooden pallet
Shipping:By sea/ By air/ By courier (DHL, FEDEX, UPS, TNT)

---
