Metal Cutting Drilling Milling Machine

Product Description

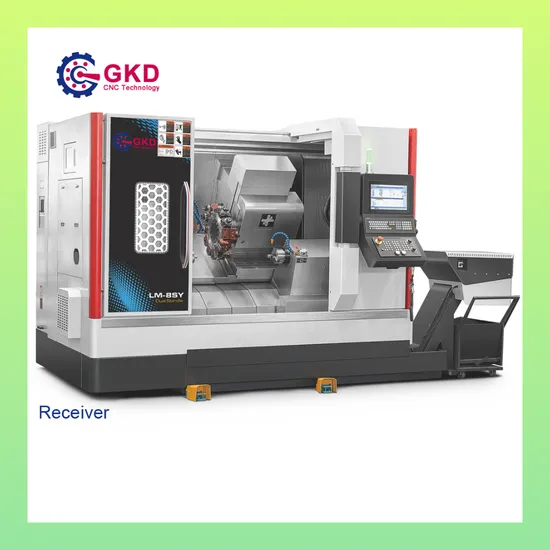

High-Precision Double Dual Spindles Slant Bed CNC Lathe CNC Turning Center CNC (Computer Numerical Control) turning lathes have revolutionized the manufacturing industry with unparalleled precision and remarkable efficiency. These advanced machines perform a multitude of operations including drilling, tapping, turning, and boring. Widely employed across diverse sectors such as automotive, aerospace, medical, and electronics, CNC turning lathes are instrumental in producing complex, high-precision components with impeccable accuracy.
In this comprehensive article, we delve into the intricate components of a CNC turning lathe, unravel its sophisticated working principles, and highlight its diverse applications across various industries.
Product Parameters

Model	LM-8SY
Double spindle/single power turret
Number of axis	7 Axis(X+Z+Z1+C1+C2+Y+TD)
Max turning diameter on the bed	Ф600mm
Max processing length	500mm
Max processing diameter	Ф500mm
Main spindle nose	A2-6
Main spindle hole	Ф66mm
Bar hole diameter	Ф52mm
Main spindle speed	0-4500rpm
Main spindle Chuck size	8"(Hydraulic chuck)
Sub-spindle nose	A2-5
Sub-spindle hole	Ф56mm
Bar hole diameter	Ф46
Sub-spindle speed	0-6000rpm
Sub-spindle chuck size	6"(Hydraulic chuck)
Main Spindle power	11KW
Sub-spindle power	7.5KW
X1 axis power	3.1KW
Y1 axis power	3.1KW
Z1/Z2 axis power	3.1KW
TD axis power	3.1KW
Hydraulic pump motor power	3.1KW
Cooling pump motor power	1.5KW
Tool turret position	12pcs
Turret model	BMT55
Outer diameter shank	25mm
Inside diameter shank	Ф32mm
Living tools milling speed	0-4000rpm
X1/Y1/Z1/Z2 axis rapid speed	25m/min
X1 axis travel	600mm
Y1 axis travel	140mm(±70mm)
Z1/Z2 axis travel	500mm
Spindle indexing repeat positioning accuracy	±0.005°
Spindle indexing positioning accuracy	±0.002°
X/Y/Z/Z1 axis repeatability position accuracy	0.002mm
X/Y/Z/Z1 axis position accuracy	0.003mm
Oil tank capacity	72L
Cooling tank capacity	180L
Machine weight	5600KG
Machine size	4100*2300*2300mm
Controller	Simens 828D/Fanuc/Syntec

Company Profile
For many years, GKD (Mingju) has dedicated itself to integrating premier resources and pioneering technologies, ensuring the delivery of superior quality to customers worldwide.
GKD is a conglomerate specializing in the research, development, and manufacturing of CNC machining centers. Located near Hong Kong, China, often referred to as the 'World Factory,' GKD also boasts a strategic European headquarters in Italy (Taiwan), forming a comprehensive global sales and service network. The Group operates five major production bases in Dongguan, Chongqing, Anhui, Hunan, and Jiangsu. Our diverse product lineup includes vertical machining centers, high-speed gantry machining centers, horizontal machining centers, horizontal boring and milling machines, CNC lathes, turning and milling centers, five-axis machining centers, and other advanced CNC machine tools and production lines. As a leading professional manufacturer with a complete industrial chain in China, we cater to various sectors such as aerospace, mold making, automotive, energy, marine engineering, construction machinery, and 3C electronic products, offering a full spectrum of CNC metal cutting machine tools.
GKD Group is committed to delivering high-quality products and comprehensive solutions, rigorously adhering to the demands for high-speed, high-precision, and high-efficiency intelligent equipment. We excel in providing cost-effective solutions to meet the diverse needs of our end customers. With robust manufacturing capabilities and exceptional after-sales service, GKD has established a solid presence, offering a full range of products and services to clients in dozens of countries and regions worldwide.
GKD Group sincerely serves you with unwavering dedication!
Our Advantages
1. Expertise in CNC Machines: Benefit from our extensive experience and professional services in the CNC machine export industry.
2. Superior Manufacturing: Incorporating top-tier Italian and Taiwanese technology to enhance our manufacturing capabilities.
3. Flexible Payment Terms: Choose from a variety of payment options including T/T, Western Union, L/C, and Paypal.
4. Premium Quality & Competitive Pricing: Enjoy high-quality materials, safe production practices, and competitive prices.
5. Accommodating Small Orders: We welcome small order quantities to meet your specific needs.
6. Swift Responses: Experience our commitment to providing quick and efficient responses to all inquiries.
7. Secure and Rapid Transport: Ensure the safe and fast delivery of your orders with our reliable transportation services.
8. Custom OEM Designs: We offer bespoke OEM designs tailored to meet the unique requirements of all our customers.
Certifications
Packaging & Shipping
After Sales Service
1)
The quality warranty period spans a comprehensive 12 months from the day the shipping commodity arrives at its destination port, excluding any physical damages. We will gladly provide you with necessary fittings free of charge during this warranty period. However, please ensure to return the damaged fittings to us by courier at your expense before we send out replacement parts. After the warranty period ends, any fittings that require repair or replacement will be at your expense, and charges will be applied reasonably.
2)
Given the challenges of face-to-face maintenance, we offer extensive online support. This includes technical assistance through email, MSN/Skype, camera, video, telephone, and fax. Whether you face issues with installation, operation, adjustment, or maintenance, our support channels are here to help.
3)
Should you encounter issues with installation, usage, or adjustments that cannot be resolved through online support, we offer a Door-to-Door service. If you need our engineers to assemble, maintain, or adjust the machine at your location, please assist us with visa formalities, prepay travel expenses, and arrange accommodation for the duration of the business trip and service period. Additionally, please provide a translator for the service engineer if necessary. Alternatively, you are welcome to send your engineers to our factory for extensive and free technical training.
FAQ
1. What is your minimum order quantity and warranty?
Our minimum order quantity (MOQ) is just one set, and we proudly offer a comprehensive one-year warranty.
2. What brand of the bearing do you use?
We utilize high-quality NSK bearings imported directly from Japan.
3. When is the delivery time?
We ensure timely delivery within 15-30 days upon receipt of your payment.
4. How do you handle the warranty period?
During the warranty period, if any product quality issues arise, our company will provide free maintenance. Should parts need replacement due to product quality, we will replace them at no cost. If the issue is not related to our machine's quality, and if the buyer requires our engineers for repairs, appropriate costs will be charged.
5. Can your company send technical personnel to our site to train our workers for free?
Upon arrival of the machine at the buyer's installation site, we promptly dispatch mechanical and electrical engineers as per the buyer's schedule. The buyer is responsible for accommodation and meals for our personnel during installation, as well as USD150.00 per day per person. We will also assist the buyer in handling visa and installation preparations prior to travel.

---
