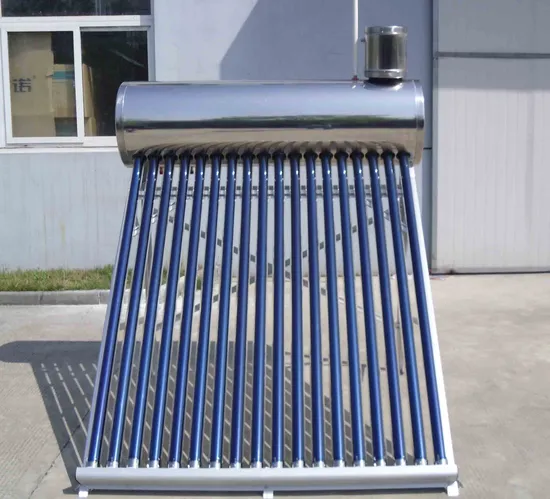

Pre-Heated Copper Coil Heat Exchanger Glass Vacuum Tube Double Tank Solar Hot Water Heater System

Product Description

Product Description
Pre-heated solar water heater with copper coil adopts passive circulation by gravity to get the hot water of tank from solar collector .The main tank plays a role of heat storage .It keeps the hot water prepared for taking away by copper coil. Copper coil is the device for heat exchange ,it conducts the heat from main tank to cold water of coil and turn cold water of coil to be hot for using.
Detailed Photos
Our AdvantagesCollector: made of high-quality glass with three target coating. weight in 2kgs higher than market. Heat insulation: high density polyurethane, perfect and smooth performance in apperance. Tank outer shell: stainless steel SUS304-2B, diameter in 360mm Inner tank shell :thickness in 0.5mm, thicker than market for high quality anti-rust and longer usage. Diameter in 460mmThe holes punched for Silicone sealing are facing outside ,cutting position do not contact with water to avoid any rustTank cover process: rivet up tank cover to main tank with aluminum rivet to avoid any risk on depart offThe fitting welding: Arc-argon technical.screw with anti-rust material :flange type .It is applied for fixing main tank to frame. Contact area between tank and frame is larger than normal screw without flange Our frame: Anti-rust aluminum ally ; thickness 2mm. strong to against the strong wind.All ports of tank are well considered to meet the demands of customers, they are available for all accessory, special request from customer can be acceptable and customer made after checking by engineer. Remark: accessory optional: assistant filling tank, electric resistant, controller, magnesium bar.
Focus point:
copper coil as best conduct metal material as exchanger for system. Pressurized hot water from coil is comfortable for shower.
heat exchanger can be coil in stainless steel or flexible stainless steel for economic design
Product ParametersVODNP-H460S3 high quality stainless steel series:

Item No.	Capacity /L			Solar Vacuum Tube		Aperture	Container Loading Sets
	Tank	Tube	System	Tube No.	Tube size/mm	Area/m2	20GP	40GP	40HQ
VODC-H460S3-10V	80	10	100	10	Φ58 * 1800	0.65	71	137	168
VODC-H460S3-12V	100	12	124	12	Φ58 * 1800	0.97	67	125	153
VODC-H460S3-15V	126	15	156	15	Φ58 * 1800	0.12	55	103	126
VODC-H460S3-18V	150	18	186	18	Φ58 * 1800	1.46	44	85	104
VODC-H460S3-20V	160	20	200	20	Φ58 * 1800	1.62	40	78	96
VODC-H460S3-24V	200	24	248	24	Φ58 * 1800	1.94	34	68	82
VODC-H460S3-30V	250	30	310	30	Φ58 * 1800	2.43	27	54	65
VODC-H460S3-36V	300	36	372	36	Φ58 * 1800	2.91	19	39	47

Packaging & Shipping
Company ProfileHaining Vod Solar Energy Industry CO.Ltd. is one of solar water heater manufacture focus on solar products and solar solutions for more than 20years. As solar water heater manufacture, we do mainly produce a large different ranges of solar water heater: open loop solar water heater, close loop solar water heater, solar thermal collector ,heat pipe solar collector and customized solar water heater. As a developing and energy saving factory, we supply different energy saving products: air source heat pump, solar pump, solar light, solar pv on-grid and off grid system, solar refrigerator, solar AC and so on.
In order to produce a high-quality solar water heater, we do investigate on large amount on producing machine and skill workers. We adopts 8 location automatic punching machine, arc-argon welding machine, automatically lines for solar manifold ,up and down foaming platform for foaming and other lead technical machines. About 85% workers have more than 10years working experience in solar water heater manufacturing. The professional engineer team is built especially for large scale solar water heating system design and installations. The team offers different solar solutions according to customer's different project request or single products request.
As a responsible solar water heater manufacture, we have a strict quality control in materials and production, we pay the double attention on producing. Even a screw, we test and choose the best for our solar water heater. We are do improvement details according the customer feedback and producing process. To offer a quality solar water heater, 100% solar water heater tank are tested and a sample set are installed to check if all is fine before delivery. All solar water heater we produced; the lifetime is more than 10years.Free exchange on damage goods fall in our warranty period.

---
