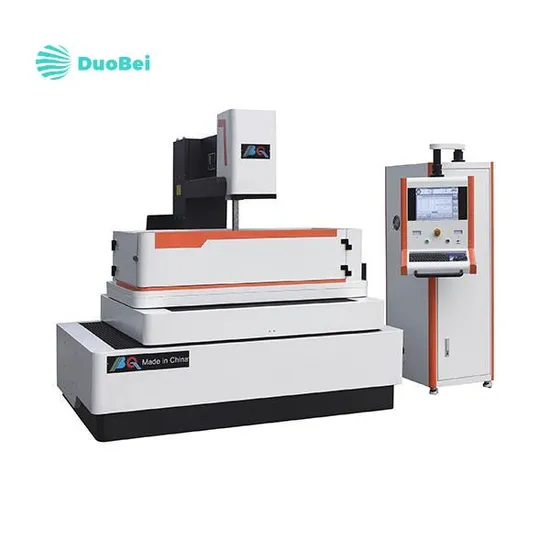

High Precision CNC EDM for Metal Cutting Wire EDM Machine Tools Bq800

Product Description

We sepecialized in high precision (≤±0.003mm) CNC EDM machines, our products widely applied in aerospace, electronic,aotomative, 3D printing, militay and defense,mold and tooling industry.
Buying a machine in moly wire edm price but achieving a brass wire edm accuracy.

More unique functions videos if you need to know, please contact us right now.

Parameters	BQS400	BQ400	BQ500	BQ630	BQ800
Worktable size(mm)	735x460	735x460	836x550	935x645	1120x800
X/Y travel(mm)	400x320	400x320	500x400	630x500	800x630
Max workpiece size(mm)	800x500	800x500	980x600	1140x730	1300x840
Max cutting thickness(mm)	300	300	300	300	380
Max load weight(kg)	400	400	600	900	1400
U/V travel(mm)	36x36	80x80	80x80	80x80	80x80
Max cutting taper	±9°/100mm	±15°/150mm	±15°/150mm	±15°/150mm	±15°/150mm
Control type	Servo,hybrid, linear motors(X/Y)	Servo,hybrid, linear motors(X/Y)	Servo,hybrid, linear motors(X/Y)	Servo,hybrid, linear motors(X/Y)	Servo,hybrid, linear motors(X/Y)
Z transmission	Numerical control	Numerical control	Numerical control	Numerical control	Numerical control
Simultaneously Controlled axes	X Y U V-4 Axis	X Y U V-4 Axis	X Y U V-4 Axis	X Y U V-4 Axis	X Y U V-4 Axis
Wire diameter(mm)	Φ0.1-Φ0.2	Φ0.1-Φ0.2	Φ0.1-Φ0.2	Φ0.1-Φ0.2	Φ0.1-Φ0.2
Wire speed (m/s)	1-11.4	1-11.4	1-11.4	1-11.4	1-11.4
Reposition accuracy(mm)	≤±0.003	≤±0.003	≤±0.003	≤±0.003	≤±0.003
Max cutting efficiency(mm2/min)	≥300	≥300	≥300	≥300	≥300
Roughness/Ra(um)	0.7-1.4	0.7-1.4	0.7-1.4	0.7-1.4	0.7-1.4
Water tank volume(L)	150	150	150	150	150
Filtering method	3 layer filteration	3 layer filteration	3 layer filteration	3 layer filteration	3 layer filteration
Power supply	Two phase 220V AC/50Hz	Three phase 380V AC/50Hz	Three phase 380V AC/50Hz	Three phase 380V AC/50Hz	Three phase 380V AC/50Hz
Control system	Baqi system	Baqi system	Baqi system	Baqi system	Baqi system
Total power consumption(kw)	1.6	1.6	1.7	1.8	2
Max machining current(A)	10	10	10	10	10
Machine gross weight(kg)	1800	2100	2600	3600	4200
Machine size(mm)	1700x1200x2000	1300x1550x1920	1550x1770x2050	1580x1820x2050	2000x2330x2360
Top-bottom abnormity cutting	Yes	Yes	Yes	Yes	Yes

Remote control and digital management function:
Our machine integrates data management, information mornitoring and other digital functions. Users can operate monitoring software on the remote servicer in real time to monitor each machines working status, processing progress, to arrange work high efficiently.
Machine Features :
1. The whole system adopts dual CPU design, DSP is responsible for servo control, X86 is responsible for display function and human-computer interaction.
2.Display CPU board uses industrial-grade motherboard, embedded Win10 operation system, SSD solid-state electronic disk, which can turn off at any time, the system never crashes.
3. The system adopts advanced pulse power and anti-electrolysis power technology to improve the dimension accuracy and cutting accuracy of the parts.
4.Users can choose to install grating scale to achieve closed-loop control.
5.The cast of machine body (HT350) adopt the resin-sand technology with twice high temperature heat treatment, which effectively prevents deformation of the machine.
6. The high precision linear guide, ball screw, are from PMI/HIWIN, and super quality bearings are from FAG Germany / NSK Japan , Servo system is from Mitsubishi Japan, the electronic component are from Panasonic Japan, the high configuration makes the mechanical precision maintain for long lifetime.
7.Great move and fast jump features.
8. X,Y, axis are driven by Mitsubishi servo and linear motor, U/V are hybrid motor(servo motor is optional), equipped with 5-axis MPG, which makes the move of the machine fast and smart.
9.The controller adopts X,Y,U,V,Z 5-axis numerical control with 5 axis digital display, has the function of automatic edge finding, automatic center finding, etc.
System functions:
BQ series medium wire cut EDM adopts computer control, X,Y,U,V,4 axis simultaneously controlled, the discharge parameter can be automatic selection and control. It is programmed with internationally universal ISO code.The main system functions are as following:

mirror machining	proportionally scaling
conventional taper cutting	top-bottom abnormality cutting
single-stage machining	4 axis simultaneously cutting
program editing	automatic wire radius compensation
automatically machining condition convert	simulation check
return halfway	pitch compensation
automatic edge finding	automatic center finding
wire alignment	graphic real time tracking and check
subprogram calling	unmanned processing(power-off after finishing)
back to the origin point and suspension point	wire feeding speed adjustment
