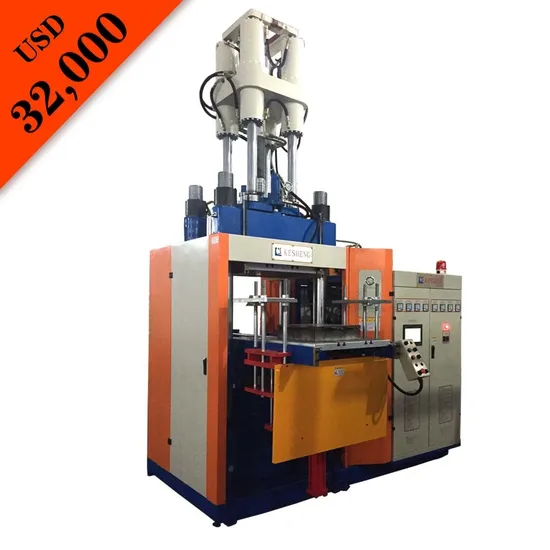

Factory Price Injection Molding Machine for Silicone & Rubber Products

Product Description

Rubber products, band, seals, gaskets making machine, 2 working stations with 2 pumps, can work independent, with vacuum pump to exthoust quickly, full automatic, high pricision, fast speed, front lift-up hydraulic molding machine.
And also applied to industrial rubber parts, auto parts, medical bottle stoppers, household ware, cookware,silicone/rubber multi-layer molded products.
Machine main feature:
1. Adopt dual power individual circuit design, stable, quiet, low failure rate, two axes can be operated simultaneously, saving 50%
2. Front mold is suitable for variety 2-layers or multi-layers molds, it is a kind of new multi-function machine
3. Lift and clamping mold speed can be adjustable, accuracy and reliability
4. Out-In mold positioning accuracy, positioning 100% security, to ensure that mold does not damage
5. Vacuum chamber can reach 650-700mmHg within 5 seconds
6. Has a fast, slow correction mode selection function, so that the mold can be correction more accurate, more secure
Main parts instruction

NO.	Item	Branch/Material	Remarks
1	Motor	Taiwan Tatung	Large torque type, quiet and silent
2	Oil Pump	Japan branch	Collective style circuit design
3	PLC	Japan Mitsubishi	Independent written, easy to operate
4	LCD touch screen	Taiwan PanelMaster	Clear and intuitive, convenient, easy to operate
5	Heating pipes	Taiwan branch	Nickel-chromium alloy wire, never rust
6	Oil seal	Japan NOK	Wear-resistant, durable, no leakage
7	Solenoid valve	Taiwan Victoria	Controlled fast, long life
8	Other electrical configuration	Japan Fujitsu, Great Wall, Chint and so on	Performance and stability
9	Thermostat	Omron	Using PID correction, temperature uniform distribution, the error value at ± 3 ºC
10	Pressure sensor	Denmark TRAFAG	Conduction pressure accurate, unbiased, and easy to use
11	Heating control system	Taiwan Solid State Relays	temperature uniform distribution, the error value at ± 3 ºC
12	Machine body casting	FCD50 Ductile Iron	Aging passivation, high tensile strength
13	Column	Carbon Steel	Hardness up to HRC55--58
14	Work plate	Size as per quotation	45 # high carbon steel, grinding, surface nitriding hardness HRC50-55
15	Machine Middle body	Umbrella tapered design	Make the machine rise and fall by force, the mold cavity pressure evenly, the product is not lack of material, no bubbles
16	Vacuum Pump	Germany Busch	Evacuated quickly, can reach 760 mm Hg within 5 seconds

Specification and parameter:

Model	200Ton	250Ton	300Ton	350Ton	400Ton	500Ton
Clamping force(Ton)	200	250	300	350	400	500
Stroke(mm)	250	250	250	300	300	300
Heating plate size(mm)	up 503x508mm down 554x560mm	up 600x600mm down 600x650mm	up 600x600mm down 650x650mm	up 700x700mm down 750x750mm	up 800x800mm down 850x850mm	up 950x950mm down 1000x1000mm
Main cylinder diameter(mm)	355	400	450	475	500	560
Horse power(HP)	10x2	10x2	10x2	15x2	15x2	15x2
Electrical power(KW)	22	34	34	43	48	72
Gross weight(KG)	9000	11500	13500	16500	19500	23500
Machine size(L*W*H mm)	3000x2360x2330	3300x2710x2530	3450x2630x2600	3600x2950x2600	3800x3300x2800	4200x3600x3300

Any inquiry please feel free to contact with us, thank you for your attantion!

---
