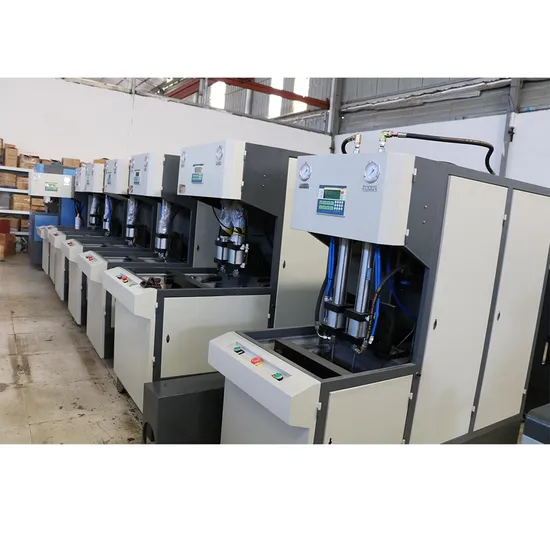

2.5L-5L Pet Container Blowing Machine

Product Description

1.description for semi-automatic blowing machine
Use for making pet bottles of 5gallon standard
2.main parameters

Model	GMS-5L
power	16KW
dimension(mm) for blower	1600X720X1830
dimension(mm) for heater	1870X630X1450
weight	1200KG
Cavity number	1
Max Size	5L
composed by	one blower one heater

Main configurations

Cylinder	YONGCHENG
Low pressure valve reducer	STNC
Plc and touch screen	THINGET
Blow valve	QUANJIA
Power switch	DELIXI

Assistant machines
1.high pressure air compressor and air tank 300l
Supply high pressure compressed air for the blowing machine
Main parameters

model	33WH-1.6/30B-SBE
power	18.5KW
dimension(mm)	1140X735X1450
weight	560KG
gas displacement	1.6m3/Min
exhaust pressure	3.0Mpa
rotate speed	800R/Min

2.air cooling dryer
Use for drying and cooling the air from the compressor
Main parameters

model	SX-20HAC
power	0.5KW
dimension(mm)
weight	55KG
flow	2.8m3/Min
Pressure	3.0Mpa

3.air filter
Use for filtration of the air
Main parameters

model	T-002-G
flow rate	2.6Nm/Min
filter precision	1u
weight	17kg
Pressure	<=3.0Mpa

water chiller
Use for chilling mold
Main parameters

model	AC03
power	2.62KW
dimension(mm)	1200X680X1100
weight	165KG
chilling capacity	6800Kcal/h
cooling way	fan cooling

Free spare with the machine

Heating lamp	10pcs
Cylinder rings	5sets

---
