US$2,500.00
|
20 Sets
(MOQ)
|
Basic Info.
Opening Type
Contactless Switch
Special Function
Commercial
Certification
TUV, ISO9001, CE
Surface Finishing
Finished
Motor
Dunkermotoren Motor
Controller
Smart Controller
Application
Hotel,Bank,Airport,Supermarket
Specification
4.2m/6m length
Production Capacity
1000sets/Month
Packaging & Delivery
Package Size
428.00cm * 19.00cm * 17.00cm
Package Gross Weight
27.500kg
Product Description

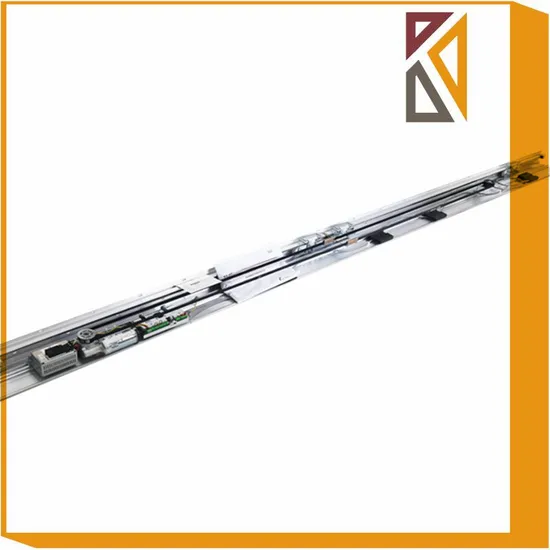

The new, innovative ES200 sliding door operator system offers the perfect solution for all applications and service requirements. The ES200, equipped with the dormakaba PowerDrive technology, fulfills every demand imposed on operators in terms of adaptability to different door widths, door weight capacity and functionality.
Wire Diagram,
Dorma ES200 control unit provide terminal for light barrier, emergency off pushbutton, programm switch, key switch, code card reader, radars, Hand programmer,etc. and has DCW port for functional controller.
Door Parameter,
1-panel sliding door
- Clear passage width
- Door panel weight, max. |
LW 700 - 3000 mm
1x200KG |
2-panels sliding door
- Clear passage width
- Door panel weight, max. |
LW 800 - 3000 mm
2x160KG |
Technical Datas,
| Height | 100 and 150 mm |
| Overall depth | 180 mm |
| Opening and closing force, max. 150 N | Max. 150N |
| Opening speed (incremental setting) | 10 - 70 cm/s |
| Closing speed (incremental setting) | 10 - 50 cm/s |
| Hold-open time | 0 - 180 sec. |
| Mains voltage, frequency | 230 V, 50/60 Hz |
| Power consumption | 250 W |
| Class of protection | IP 20 |
| Compliant with EU low-voltage directives | Yes |
| Manufacture according to ISO 9001:2000 | Yes |
Basic Module(BM),
| Modular design | Yes |
Microprocessor-controlled function programs
- Off
- Automatic
- Permanent open
- Partial opening
- Exit only
- Night-bank control |
Yes
Yes
Yes
Yes
Yes
Yes |
Connections for
- electro-mechanical lock
- light barriers |
Yes
Yes |
| Adjustment of all basic parameters via integrated display and pushbuttons | Yes |
| PDA parameter setting | Yes |
| 24 V output for external loads | Yes |
| Read-out error memory with error codes | Yes |
| DCW bus interface | Yes |
| Rechargeable battery pack for emergency operation | Yes |
>>
