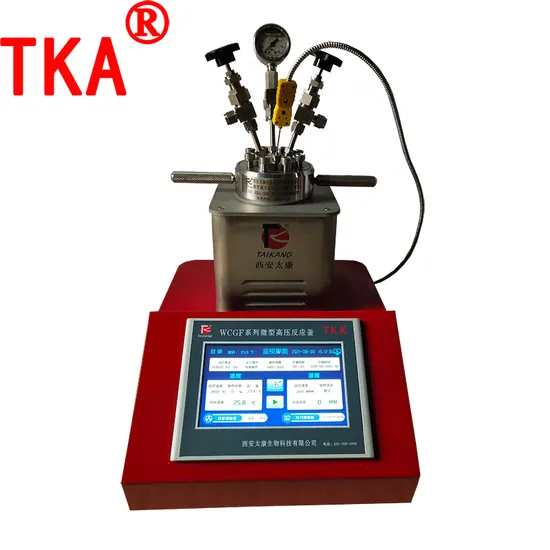

Tka 25-1000ml Micro Stainless Steel High Pressure Reactor.

Product Description

Product Description
When this product is used for chemical, chemical high-pressure synthesis or catalytic reaction, it is necessary to measure the temperature, measure the rotational speed, add inert gas, stabilize the pressure and realize the required experimental environment such as online sampling.
Technical Advantage:
1.The entire reaction process can be observed during the reaction.
2.The observation window adopts JGS2 high transmittance quartz glass to realize online photochemical reaction under high pressure.
Application example:
Suitable for photochemical high pressure reaction, carbon dioxide CO2 reduction, carbon dioxide CO2 reduction to methanol
Reduction of carbon dioxide CO2 to methane CH4, reduction and degradation of nitrogen oxides NOx, high-pressure photocatalytic degradation of formaldehyde
solution, etc. Photocatalytic reaction, Fischer-Tropsch reaction, hydrogenation reaction, polymerization reaction, homogeneous reaction and carbon dioxide supercritical reaction, etc.
Model Specification

PN	Size	Volume	Connecion Model	Pore diameter	Intelligent safety valve	Display Accuracy
WGHX-25ML	Φ40*60	25ml	Screw Thread	30mm	Yes	±1ºC
WGHX-50ML	Φ60*80	50ml	Flange	40mm	Yes	±1ºC
WGHX-100L	Φ80*120	100ml	Flange	40mm	Yes	±1ºC
WGHX-200ML	Φ80*140	200ml	Flange	60mm	Yes	±1ºC
WGHX-500ML	Φ100*240	500ml	Flange	60mm	Yes	±1ºC

Product Parameters

Volume	25ml,50ml,100ml,200ml,500ml,Can be costomized
Reactor Material	Stainless steel 316L/Titanium/Hastelloy (optional)
Operating pressure	10MPa/20MPA(optional)
Valve and Connecting material	Stainless steel SU316L
Reactor liner container:	ETFE inner sleeve easy to clean
Transparent window material:	using polished JGS2 quartz glass (pressure window) or sapphire mirror
Operating temperature	The Max tem.p is 350ºC for Titanium/Hastelloy (optional),The Max tem.p is 250ºC for stainless steel.The tem.p display accuracy is ±1ºC.
Max pressure/Min Pressure	10Mpa/1Pa
mixing speed	0-1500RPM
Speed Accuracy	±5RPM
Power Supply	220V,50HZ,
The valve fittings are of European standard, and the interfaces are all standard configuration. The ball valve can be connected with the bottle filled with inert gas to carry out the inert protection experiment reaction, so that the reactant is not in direct contact with the air.

Package&Shipping
Package Detail
1) Wooden packing
2) The goods can be shipped by sea, air or train, small goods or spare parts will be shipped by express.
3) You can choose your own freight forwardwe as well.
4) Door to Door Delivery to save your energy and time. We'll take the all risks during transportation.
Shipping Details
1) AMERICA:3-8 working days.
2) ASIAN:3-8 working days.
3) EUROPE:5-10 working days.
4) OCEANIA:4-9 working days.
5) AFRICA:7-13woring day.
Company Profile
Xi'an Taikang Biotechnology Co., Ltd, is a famous manufacturer of Lab equipment located in the central China. Now has TAIKANG, TKA two well-known brand trademarks. The main products include ultra-high temperature and high pressure reactor, high pressure photochemical reactor, supercritical high pressure reactor, high pressure glass reactor, micro high pressure reactor, high pressure ultrasonic reactor, Ultra-high temperature hydrothermal synthesis reactor, photocatalytic reactor, visual catalytic reactor, hydrothermal synthesis reactor, rotary evaporator, parallel synthesis reactor, high and low temperature circulator, high and low temperature high pressure tubular reactor and other equipment and so on.
Specialize in this field for more than 20 years,TKA brand instrument has own high reputation in more than 70 countries and regions, provide technical support for tens of thousands organizations to solve problems within their research, special for university, research institutes, industries, inspection agencies, etc. Promoting technology progress and improving human life is TKA social mission.
We welcome new and old customers from all over the world to contact us for future business relationships and achieving mutual success!!
Exhibition Show
Certifications
FAQ
Q1:Are you trading company or manufacturer?
A1:We are professional manufacture of lab equipment and we have our own factory which is a high-tech enterprise integrating R&D, production and sales. And welcome to visit our factory.
Q2: How long is your delivery time?
A2: Usually, delivery time is 30-45 days after receiving your payment.
Q3:How to shipping the replacement parts?
A3:We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
Q4: How about your quality warranty ?
A4: Normally all TKA products are supplied with a warranty of 12 Months from the date of shipment.
Q5: Do you accept OEM and ODM orders?
A5: Yes,We accept.
Q6:What is your terms of payment?
A6:Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 50% T/T in advance, balance before shipment.
Q7:Can we visit your factory?
A7: Welcome visit our factory.

---
