Chinese Herbal Medicines/ Chemical Raw Materials Wfj Series Ultrafine Grinding Machine

Product Description

Product Description
Superfine pulverizer is suitable for medicine, agriculture, food, chemical, alloy, metallurgy, geological, scientific research, etc. Many varieties of small quantities of traditional Chinese medicine, precious medicinal materials, ore, chemical raw materials such as: Ejiao, Frankincense, Astragalus, Sanqi, Hippocampus, Dodder Ganoderma lucidum, licorice, pearls and other materials of different properties can be crushed very well. This machine adopts high-speed single-phase motor, which has the advantages of precise structure, small size, light weight, high efficiency, no dust, clean and hygienic, simple operation, beautiful appearance, energy saving and safety, etc., which makes the production of medicine, food and chemical more suitable. National standards meet the requirements of GMP.

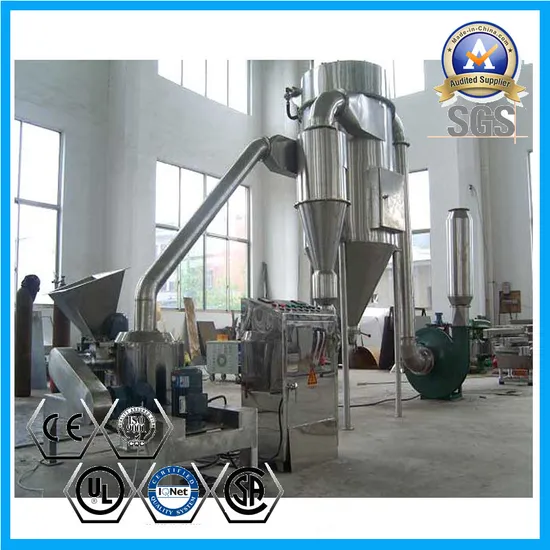

The equipment consists of main machine, assistant machine, dust bag filter and control cabinet.The process of produce is continuous.
Application: The machine is extensively used in pharmaceutical, chemical, food industries for pulverizing dry brittle materials .
Technical Parameter

Spec	unit	WFJ15	WFJ-18	WFJ-32
production capacity	kg/h	10-200	20-450	60-800
inlet material diamenter	mm	<10	<10	<15
oulet material diamenter	mesh	80-320	80-450	80-450
power	kw	13.5	17.5	46
main rotaing speed	r/min	3800-6000	3800-6000	3800-4000
overall dimension(L×W×H)	mm	4200×1200×2700	4700×1200×2900	9000×1500×3800
weight	kg	850	980	1500

---
