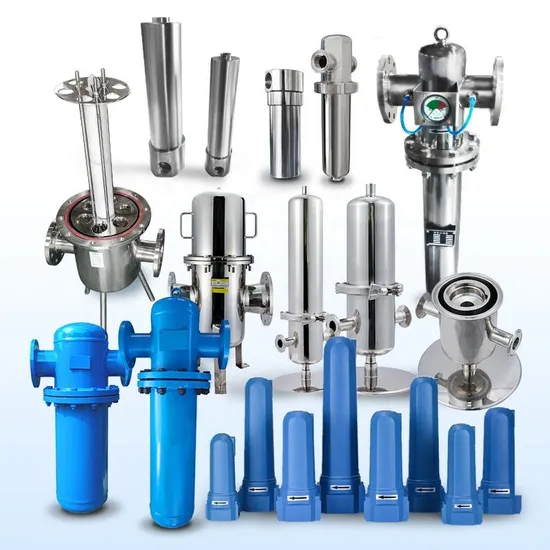

40 Bar Stainless Steel High Pressure Compressed Air Filter for Medical Applications

Product Description

Product When pressure increase of the compressed air, the requirements for the compressed air filtration and install equipment also increase. SUNWIN® high-pressure filter's construction and design are implemented in all details for highest possible operating safety. Also ensures great separation performance under high pressure conditions. HW series high pressure compressed air filters with a particularly robust housing and higher temperature resistance of up to 100°C. Product Parameters

Model	Capacity Nm3/min	Air Connections	Dimensions(mm) L W H					Weight kg
C/T/A/AA/H-001/4.0	1.4	Rc3/4"or Rc1"	88	80	274	4
C/T/A/AA/H-002/4.0	2.4	Rc3/4"or Rc1"	88	80	274	4.5
C/T/A/AA/H-003/4.0	3.8	Rc3/4"or Rc1"	88	80	370	7
C/T/A/AA/H-006/4.0	6.5	Rc1-1/2"	118	106	520	12
C/T/A/AA/H-008/4.0	8.5	Rc1-1/2"	118	106	520	12.5
C/T/A/AA/H-010/4.0	10.5	Rc1-1/2"	118	106	600	15
C/T/A/AA/H-013/4.0	13.5	Rc1-1/2"	118	106	600	15.5
C/T/A/AA/H-015F/4.0	18	DN50	310	133	860	38
C/T/A/AA/H-020F/4.0	25	DN65	379	133	1040	65
C/T/A/AA/H-025F/4.0	28	DN65	370	159	1215	78
C/T/A/AA/H-030F/4.0	35	DN80	451	219	1129	97
C/T/A/AA/H-040F/4.0	45	DN80	451	219	1129	102
C/T/A/AA/H-050F/4.0	55	DN100	513	273	1207	144
C/T/A/AA/H-060F/4.0	65	DN100	513	273	1207	145
C/T/A/AA/H-080F/4.0	85	DN125	560	325	1187	210

Features The filter housing produced with the numerical control precision machining and the high temperature pressure test experiment. The materials include stainless steel, carbon steel respectively 4.0Mpa 5.0Mpa pressure levels. This air filter is suitable for special gas, high efficiency, corrosion resistance and high temperature resistance as corrosion-resistant surface treatment was performed both. The filter element with advanced materials and stable stainless steel bones, to achieve efficient precision filtration effect. Workshop Application Recommended Products High Pressure Air Compressor 40 bar high pressure air compressor for bottle blowing machine High Pressure Compressed Air Filter 40 bar high pressure compressed air filter for high pressure air compressor High Pressure Air Compressor 40 bar high pressure air compressor High Pressure Refrigerated Dryers Essential drying equipment for high pressure systems Working Principle We take you to learn more about high pressure refrigerated dryers. High Pressure Compressed Air Filter We take you to learn more about high pressure compressed air filters

---
