Product Details
Product Description
Product Description
Optional Configuration:
1. Pretreatment + Primary RO system+ Secondary RO system + Sterilizer + Circulatory System
2. Pretreatment + Primary Reverse Osmosis + EDI Equipment + Sterilization Device + Circulatory System
3. Pretreatment + Primary Reverse Osmosis + Secondary Reverse Osmosis + EDI Equipment + Sterilization Device + Circulatory System
Note:
(1). Pretreatment: Quartz sand filter + AC filter + Softener filter (or anti-scalant);
(2). Sterilizer: UV lamp, ozone generator, pateurization or multiple effect distillation.
Product Description

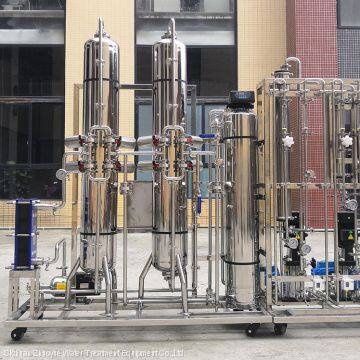

ZYGMP-Double RO EDI Ultrapure Water System
The core technology of ZYGMP--EDI Ultrapure Water System adopts single-stage or double-stage reverse osmosis system, EDI and other latest processes to design targeted high-quality pure water treatment processes in a targeted manner to meet the purified or distilled water of pharmaceuticals, hospitals, biologics, animal pharmaceutical, laboratory diagnostic reagents, etc. The entire system is composed of SUS304L or SUS316L all stainless steel material combination, and before the water point must be equipped with ultraviolet,ozone disinfection device or can also be pasteurized.
1. Water production: 250-2000lph (or according to customers' requirement)
2. Control: Automatic 7'' PLC touch screen operation
3. Inlet water condition: tap water
4. Water quality: Meet the requirements of GMP and Ch.P. 2015;
pure water conductivity: ≤ 5.1us / cm (resistivity ≥ 0.2MΩ.cm)
9. Inlet water condition: Tap water
10. Working pressure: 0.2-0.4 Mpa
11. Water temperature: 5-40 ℃
12. Optional configuration: frequency/constant water supply system, PH regulating system, pasteurization system, UV lamp, ozone generator, 7'' PLC touch screen control system, EDI system, mixed bed resin, multi-effect distillation machine.
Different Standards of EDI Ultrapure Water System
The Parameters of EDI Ultrapure Water System
| No. | Model | Water yield
(L/H)
| Voltage/Power
(V/Kw)
| Body Size
(L*W*H mm)
| Water Tank
(L/Material)
|
| 1 | ZYGMP-250 | 250 | 380/2.5 | 2000*800*1600 | 250/SS304/316L |
| 2 | ZYGMP-500 | 500 | 380/3.5 | 2000*800*1600 | 500/SS304/316L |
| 3 | ZYGMP-1000 | 1000 | 380/3.5 | 2000*800*1600 | 1000/SS304/316L |
| 4 | ZYGMP-1500 | 1500 | 380/4.0 | 2000*800*1600 | 1500/SS304/316L |
| 5 | ZYGMP-2000 | 2000 | 380/5.0 | 2500*800*1700 | 2000/SS304/316L |
The Working Process of EDI Ultrapure Water System
More Details of EDI Ultrapure Water System
Reference Photoes of Ultra Pure Water Machine
Company Information
EDI Ultrapure Water System
Packaging & Shipping
EDI Ultrapure Water System
FAQ of EDI Ultrapure Water System
1.Q: Are you a factory?
A: Yes,Our 1500 square meters modern factory is located in Rongzhi Innovation Industrial Park at Pixian modern industrial road, While 300 square meters. Sales Department office is located in Jinfu International Building, Jinniu District,Chengdu, China.
2.Q: Do you provided after-sale service?
A:Sure. One year product warranty. 24 on-line serive for any technical consult.
3.Q: What is your advantage?
A:High quality, conpetitive factory price and 24h online services.
4.Q: How can you control the quality and delivery?
A: All machines will be tested before packaging. Wooden package is strong and safty for lond-distance transportation.
>>
