200-500kg/H Barbecue Used Briquette Machine

Product Description

Biomass Wood Briquette Press Machine
1.Raw material:could be sawdust,maize stalks,bamboo,rice husk,coffee husk,sugar cane bagasse, wood chips,wood waste,straw,agro-waste,paddy straw, forestry waste,crop stalk,branches,tea waste,rape stalks and so on.
2.Requirements for material:
The moisture should be less than 15% and the size less than 6mm in powder state.
If the moisture and size more large than it,the buyer should use crusher and dryer. During the process,our sawdust briquette machine no need use binder,could make the waste become wealth.

Model	BM150	BM220
Power	15KW	22KW
Capacity	120-200KG/H	250-300KG/H
Weight	550KG	680KG
Dimension	1.68*0.72*1.25M	1.86*0.72*1.32M
Note	Briquette size:50mm	Briquette size:50-70mm

Final products

The biomass briquette is made by sawdust briquette machine.Under the high temperature and high pressure,the briquettes have high density.The shape of briquettes could be hexagon,round,square, etc.
The length of sawdust briquettes could be 30-40cm.
The briquettes could be used in biomass power plant heating industry,boiler heat source and other industries.
And the briquettes also could be sawdust briquettes charcoal by using carbonization furnace and charcoal could be used for BBQ.

Working principle
It is by using many kinds of raw material though high temperature 300-300ºC and high pressure could be briquettes in a short time without any binder.
Spare parts

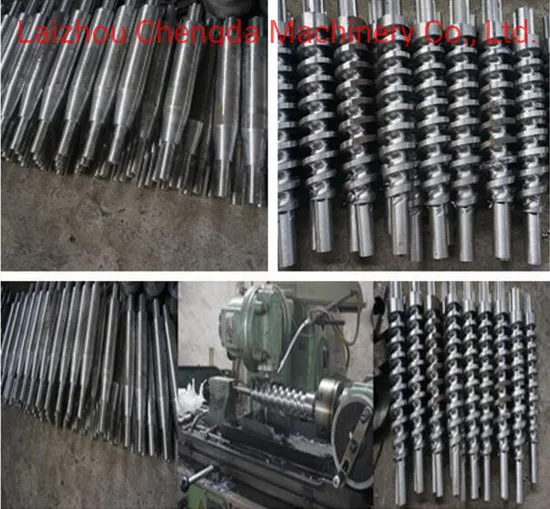

The wearing parts of sawdust briquette machine is mold,propeller and heating ring.The lifetime of mold is 8-10 months,lifetime of propeller is 6 months and the lifetime of heating ring is 4-6 months.

Features

1.Stable performance,energy saving,high quality,reasonable design and easy operate.
2.No need binder,low cost,good quality
3.Automatic temperature system,our sawdust briquette machine could stable work after setting the temperature.
4.The buyer could adjust shape by using different molds.
5.The sawdust briquettes could be charcoal by using carbonization furnace.
6.Supply the sawdust briquettes production line as follows:
Crusher--dryer--briquettes--carbonization furnace--package

FAQ

Q:If you need use crusher and dryer?
A:It is according to the buyer's raw material,if the moisture less than 15% and size less than 6mm,the buyer no need use crusher and dryer.One the contrary, the buyer need use crusher and dryer.

Q:Does our sawdust briquette machine could use in the production line?
A:Yes,our sawdust briquette machine could use in production line and we also could equipment briquettes production line for you.

Q:How about our warranty?
A:The warranty is 1 year.After sell the machine,we also could send the engineer to your country for teaching and installing,but the buyer should ensure the engineer's safe.
