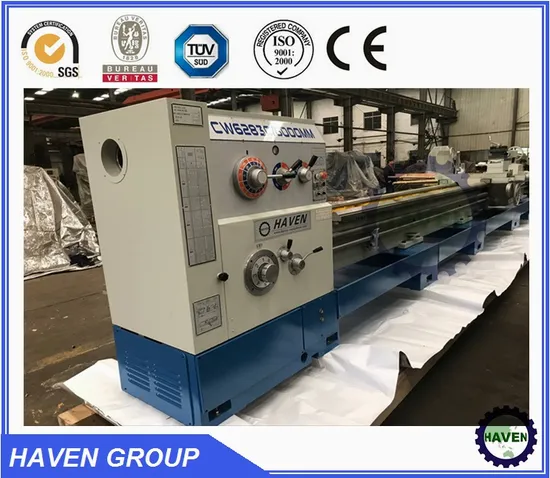

CW6263C/6000 Heavy Duty Horizontal Lathe Machine

Product Description

CW6263C/6000 Heavy Duty Horizontal Lathe Machine
Main feature:
The lathe machine can perform to turn end face, cylindrical surface and internal holes of various parts as well as metric, inch, module, and pitch threads. The top slides can be operated indivedually by power for cutting short taper surface also., can be turned auto through compound movement combining longitudinal feed with top slide feed, moreover, the machiens may be used for drilling, boring and trepanning.
Standard accessories: Work lamp; Coolant system; 500mm 3-jaw chuck and flange plate; 630mm 4-jaw chuck and flane plate; 700mm steady rest; dead center; sleeve; tools and tool box; foundation bolts, English manual.
Main specification:

Model		Unit	CW6163C CW6263C	CW6173C CW6273C	CW6183C CW6283C	CW6193C CW6293C
Swing over bed		mm	630	730	830	930
Swing in gap		mm	800	900	1000	1100
Swing over cross slide		mm	350	450	550	650
Distance between centers		mm	750,1000,1500,2000,3000,4500,6000
Length in gap from face plate		mm	300
Spindle nose			Cll or D11
Spindle bore		mm	105,130
Spindle speeds		rpm/steps	10-800/18
Cross slidle travel		mm	480
Top rest travel		mm	225
Quill diameter		mm	90
Quill travel		mm	260
Quill taper			MT5
Bed width		mm	550
Metric threads		mm/kinds	1-240/53
Inch threads		tpi/kinds	30-2/31
Module threads		mm/kinds	0.25-60/46
Diametral pitch threads		Lpi/kinds	60-0.5/47
Main motor power		kw	11
Packing size	Length	mm	3460,3390,3795,4330,5310,6810,8310
	Width	mm	1400
	Heigth	mm	2000

---
