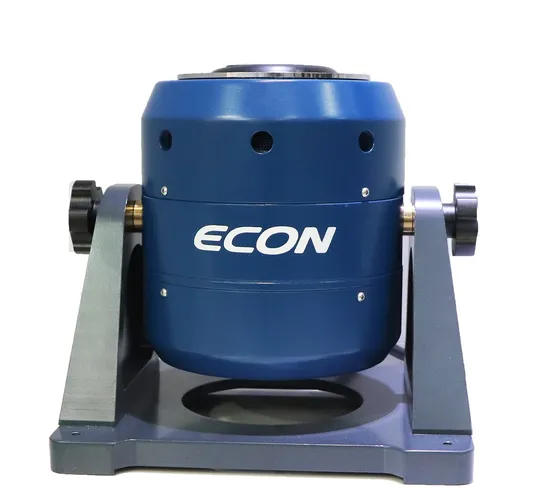

100N Electro-Dynamic Vibration Testing Mini Shaker (Air-Cooled Shaker)

Product Description

Product Description VE series Miniature shaker is a high precision, high reliability and wide frequency band vibration equipment developed by ECON on the basis of accumulated years of vibration control technology. The frequency range is 2Hz-10,000Hz, and the force range is 20N-1,000N.
Features Closed-loop control, high-precision vibration excitation
Excellent structural design with high precision and reliability
Accurate, stable and advanced control system
Small type that is easy to carry
Energy capture/recover
Performance test of piezoelectric ceramics and sensors
Earthquake simulation of small civil engineering structure models
Semiconductor material stress screening
Education and research
Product Parameters

System Model	VE-5102	VE-5110	VE-5120	VE-5150	VE-51100M
Sine force Peak (N)	20	100	200	500	1000
Frequency range (Hz)	5~10k	2~7k	2~8k	5~5k	2~6.5k
Max. Acceleration (m/s²)	200	400	800	340	600
Max. Velocity (m/s)	0.8	2	2	8	20
Max. Displacement pp(mm)	5	13	13	10	25.4
Screw dimensions (standard)	5×M5	5×M5	5×M5	5×M5	M6
Weight (kg)	5	18	18	55	130
Dimension (W×D×H) (mm)	165×150×160	245×210×240	245×210×240	315×284×280	472×394×510
Cooling Method	Natural cooling	Air cooled	Air cooled	Air cooled	Air cooled

Other Features For Vibration Test of Electronic Components
You can test the performance of manufactured electronic components in advance by simulating various vibration loads to check whether they will work properly on equipment and whether they will be damaged by vibration. Educational Demonstration System
Because it is a simple and small system, it can be easily installed on a laboratory bench. It is useful for experiments and research at various institutions. We can also construct highly specialized systems if necessary. For Modal Analysis
This is an analysis method to investigate the structural characteristics of the target. The purpose of the analysis is to provide reference values and evidence for the analysis of system vibration characteristics, fault diagnosis and forecasting, and optimization of structural dynamics properties. Vibration Energy Capture and Reproduction
It is possible to collect the vibrational energy generated in one place and regenerate it in another place. Because the system is small, it is portable and can be installed in narrow spaces. Useful for researching and solving vibration-related problems. Company Profile

---
