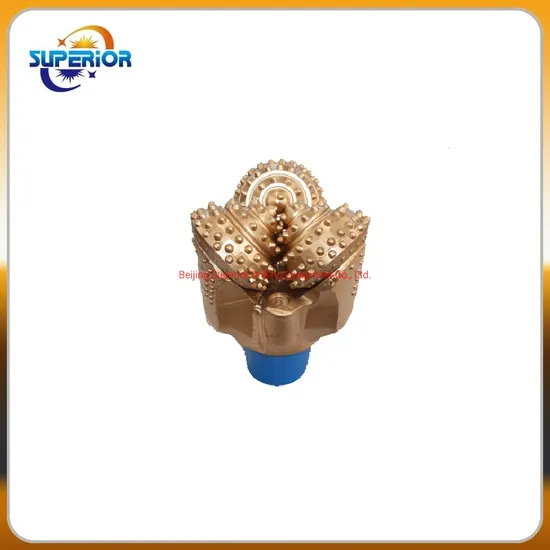

311mm Tricone Bit Three Cones Bit Drill Head

Product Description

Specifications
12 1/4" Tungsten Carbide Insert tricone bit IADC 637
1.the reasonable price
2.fast delivery
3.sufficient stock
4.API certificate
Feilong Retop Rock Bit Manufacture Co.,Ltd was established in 1983. We are dedicated to producing tricone bits, PDC bits. We are professional and sincere. We are looking forward to serving you at any time.

1.Main structure features:

These tungsten carbide insert bits are used to drill soft formation with low compressive strength and high drill ability, such as shale, clay, sandstone and soft limestone, etc.

1. Tungsten carbide insert tooth sealed and gage protection journal bearing, hard faced head bearing surface. Cone bearing inlaid with friction reducing alloy and then silver plated. The load capacity and seizure resistance of the bearing is greatly improved
2. O- ring seal is made of the more wear resistance high saturated Buna-N with the section and precisely designed sealing flange in the cone sealing area increased the reliability of the seal.
3. The bit bearing is ball which can be applied to high rotary speed drilling.
4. All rubber compensator is used which can provides the bearing system with good assurance of lubrication
5. New type of grease that can sustain high temperature up to 250C is utilized.
6. High wear resistance and excellent cutting ability of the insert bit are given full play by using carbide compacts of high strength and high toughness in combination with optimized compact numbers and rows, the exposure height and special shaped compacts.
7. Meet strictly of API standard
8. Manufacturer of TCI tricone bits, steel tooth tricone bits and PDC bits
9. High quality, reasonable price and best service.
10. Delivery on time
11. Good feedback of the clients
12. Be used for water well, oil field, underground, construction, geothermal well,etc

2.Size Available:

From 3 7/8"(98.4mm) to 26"(660.4mm)

3.Note:

Sizes and types that are not shown above can be customized according to specific drilling requirements.

---
