Product Description
Product Description

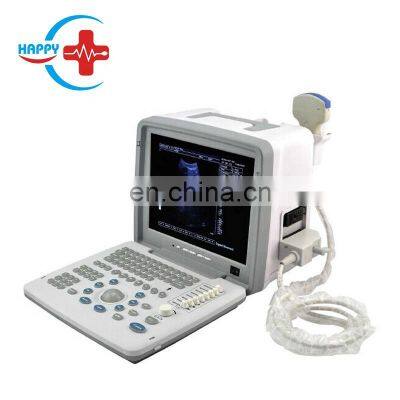

Product typeB ultrasound scannerBrandHappycareModelHC-A002Display:10 Inch LED displayDisplay mode:B, B/B, 4B, B+M, MStandardWith 3.5MHz convex probeUSB interface2ApplicationGynecology, GeneralFeatures:1. Mass memory , cine loop and permanent storage.2. Radium Caved buttons and Silicon backlit buttons to be chosen;3. Intelligent fluorescence trackball.4. 8-segment TGC control. Overall Gain control5. 2 USB ports , Upgraded and expandable printer function;6. 2probe connectors. Probe automatic identfication;7. 2SVGA video outputs and 21 PAL video outputs offer connection to video image recorder and image workstation. etc.8. Report page is generated automatically.9. According to the user’s pattern style preference, the parameter will be set up automatically and saved,Boot default this parameter. This default of parameter can aslo be modified in the menue.ModelHC-A002Display Modes3.5MHz/R60 convex array probe:B,B/B,4B,B+M,M5 MHz/R20 Dimpling array probe:B6.5MHz/R13 Dimpling array probe:B7.5 MHz/L40 Line array probe:BImage Mutiplying Factor3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0( 6modes)x0.8, x2.0 (display penetration depth)6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)E-zoommagnify 2 times of real time imageDynamic Range0~120dB ajustableFocus Position1,2,3 and 4-segments dynamic electron focusingImage Processing:γcorrection, frame correlation,point correlation, line correlation, digital filtering, digital edge enhancement and pseudo colorprocessing, etc.According to the user’s pattern style preference, the parameter will be set up automatically and saved ,Boot default thisparameter. This default of parameter can aslo be modified in the menue.Frequency Conversion:2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversionfrequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probeMeasuring FunctionDistance,circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks(BPD,GS,CRL,FL,HL,OFD,TTD,AC ), expected date of confinement and fetus weight, etc.Annotation Functionhospital name, patient’s name, age and gender64 body marks (with probe’s position);Full-screen character annotation; Real-time clock displayPuncture Guide3.5MHz convex array probe can display puncture guide line in B modeGain Control8 segments TGC and overall gain can be adjusted respectivelyImage Polarityleft and right flip, black and white flip, up and down flipCapacity Cine Loopreal time display 256 consecutive images which are memorized successivelyImage Playbackseries playback or check one by onePermanent Storage:128 imagesOutput InterfaceVGA video output offers connection to SVGA color displayPAL video output offers connection to PAL display and printervideo image recorder and image workstation, etcUSB PortOffers storing images in USB flash disk
>>
