Screw Cutting Steel Blade Hot Plate Finished Metal Helical Flight with Hole

Product Description

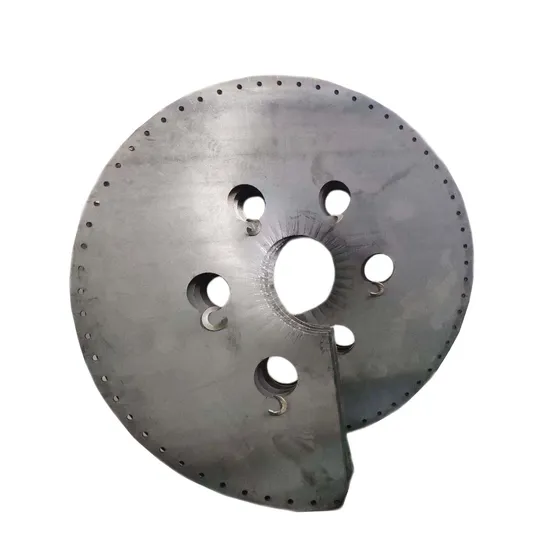

Screw Cutting Steel Blade Hot Plate Finished Metal Helical Flight With Hole
This product is one customized screw blade made of heavy steel of Q345 in 10mm used for screw/Helix pile on the house and solar panel foundation, a 1.2kw laser cutting machine cuts it, and a professional machine strength and forms the spiral shape. The cutting edge of this screw plate is very smooth and the tolerance is controlled within 0.05~0.1mm according to the drawing required measure, which is a very high standard in the whole industry. The professional welding standard makes it look very nice.
We also offer various customized laser cutting, forming, bending, and welding services for steel, copper, aluminum, etc materials, and the thickness can be arranged from 1~50mm.
Product details
Segmented equal-thickness spiral blades
Sichuang Jiade single-pitch spiral blades adopt cold rolling technology to strictly control the inner, and outer diameter, pitch, and parallelism errors of the blades. The welded spiral shaft rotates smoothly, forming smooth spiral propulsion, greatly reducing blade wear and energy consumption during use, and improving material transportation efficiency per unit time. Our products have been widely used in various industries such as mining, chemical industry, grain production, food processing, environmental protection, and construction spiral pile foundations. Product technical characteristics
Production process: proprietary special cold pressing forming process; Product advantage: Segmented equally thick spiral blades are formed by cold pressing, which does not affect the physical properties of the product material, and can ensure its inner and outer diameters, pitch, and vertical angle between the spiral surface's centerline and the centerline; Large outer diameter, large thickness, and large pitch; The spiral curve is smooth, the spiral angle is good, and the prime line of the spiral surface is completely perpendicular to the midline;
Common materials: carbon steel, alloy steel, stainless steel, wear-resistant steel, etc; Product specifications: Customized according to customer needs, with a large diameter of 4000mm and a large thickness of 70mm;
Product function: Segmented equally thick spiral blades are used in equipment such as screw conveyors, mixers, pile drivers, drilling machinery, etc., which is conducive to material transportation and spiral excavation, and can greatly improve the work efficiency of equipment
Product specifications
The production technology of "segmented equal thickness spiral blades" is a proprietary technology developed to solve the difficulties of continuous cold rolling spiral blades in controlling large diameter, large thickness, special specifications, and difficult forming of wear-resistant materials, stainless steel materials, etc. using continuous rolling technology. The segmented equal-thickness spiral blade has a single-pitch shape. After forming, the outer diameter, inner diameter, and pitch can meet the size requirements of customers, making assembly convenient and fast. We can manufacture various forms of segmented equal-thickness spiral blades, including carbon steel, wear-resistant steel, and stainless steel with an outer diameter of less than 4000mm, an inner diameter of more than 40mm, and a pitch of less than 3000mm, as well as equal diameter, equal pitch, variable pitch, and inner hole with support plates with a thickness of less than 70mm. Personalized production can be carried out according to the special needs of customers. Various spiral blades are required for equipment in various industries such as industry, environmental protection, and construction spiral pile foundations.

(specification and quality standard)
(specification)		(steel)	(Technology)	(Company standard / tolerance)
(D)	60mm---3000mm		laser cutting and water jet; cold forming technology	:±2.0mm D:±2.0mm:+2.0mm d:+2.0mm:±3.0~5.0mm P:±3.0-5.0mm:≤+3° Depth of Parallelism≤+3°
(d)	20mm---2500mm	carbon
(P)	60mm---3000mm	alloy
		stainless
(S)	1.0mm---60.0mm
		Wear resistant

Welcome to contact us for further discussion !!!

---
