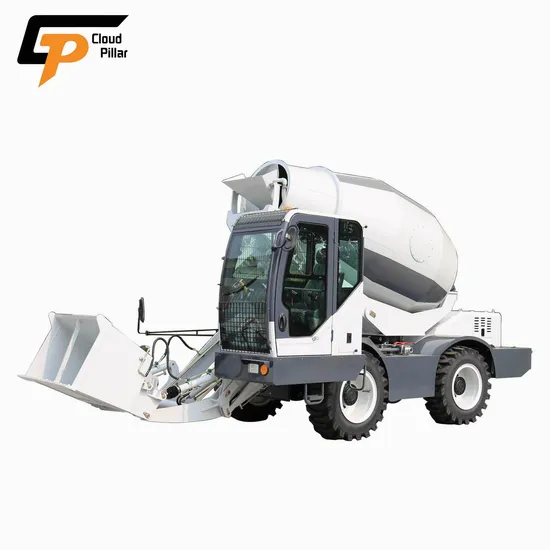

| Model | CPM5.5 |
| Type | Integral frame chassis movable, self loading, mixing, transporting |
| Function | concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging |
| Productivity | BATCH≤15MINS, 4BATCHS(22CBM)/HOUR |
| Drive | 4 x 4 |
| Steering | Front steering |
| Engine | YUCHAI Engine: Four-Cylinder 2200RPM,110KW |
| Speed | High Speed: 38.5KM/H; Low Speed:7.5KM/H |
| Gear number | Three forwards, three backwards |
| Fuel consumption | Idle state 2L-3L, working state 8L-10L. |
| Tyre | 16/70-24 (Steel wire tyre) |
| Drum | Geometric volume 6.8 cubic meters, the best stirring 4.5-5.5 cubic meters |
| Spiral blade in tank | Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right |
Mixing tank 270°discharges | The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle |
| Tipping Chute | Equipped with 2 chute for detachable to increase discharging length |
| Tilt of mixing tank | 16° |
| Shovel | Shovel capacity: 0.72³ |
| Bucket discharge switch | Hydraulic gate, electric control |
| Operation Handle | Electric control button four-way guide handle |
| Moving Hydraulic | Pump:DENGHONG |
| Torque converter(CloudPillar) |
| Work hydraulic | Pump/valve: DENGHONG |
| Mixing system | Speed Reducer:(CloudPillar) |
| Mixing motor(ZHENJIANG DALI) |
| Drive axle | LIUFENG |
| Water Supply | Hydraulic driving self-primiing pumps |
| High-Pressure Water Pump Wash | High-pressure water pump wash |
| Weighing system | Electronic weighing system (language optional) |
| Voltage | Battery 24V-100A 2 pieces |
| Hydraulic oil box | Tankage 180L, Summer:NO68 Hydraulic Oil, Winter:NO46 Hydraulic Oil, Very Cold Zone: NO35 Hydraulic Oil, |
| Water tank capacity | 620L |
| Diesel tank capacity | 190L |
| whole weight | Complete vehicle kerb mass 9200KG |
| Cab | Prevent falling objects cab |
| Adjustable steering wheel |
| Adjustable seat |
| Seat belts |
| Fire extinguisher |
| Astern image |
| Alarm Lamp | Standard configuration |
| Radio | Standard configuration |
| Cabin A/C | Optional |
| Escape hammer | Standard configuration |
| Astern sound prompt | Standard configuration |
| Walking control mode | Standard configuration:Electric control |
| Model | CPM4.0 |
| Type | Integral frame chassis movable, self loading, mixing, transporting |
| Function | concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging |
| Productivity | BATCH≤15MINS, 4BATCHS(16CBM)/HOUR |
| Drive | 4 x 4 |
| Steering | Front steering |
| Engine | YUNNEI Engine: Four-Cylinder 2200RPM,92KW |
| Speed | High Speed: 36.5KM/H; Low Speed:6.5KM/H, |
| Gear number | Three forwards, three backwards |
| Fuel consumption | Idle state 2L-3L, working state 6L-8L. |
| Tyre | 16/70-20 (Steel wire tyre) |
| Drum | Geometric volume 5.5 cubic meters, the best stirring 3.5-4 cubic meters |
| Spiral blade in tank | Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right |
| mixing tank 270°discharges | The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle |
| Tipping Chute | Equipped with 2 chute for detachable to increase discharging length |
| Shovel | Shovel capacity: 0.55³ |
| Bucket discharge switch | Hydraulic gate, electric control |
| Operation Handle | Electric control button four-way guide handle |
| Moving Hydraulic | Pump:DENGHONG |
| Torque converter(CloudPillar) |
| Work hydraulic | Pump/valve: DENGHONG |
| Mixing system | Speed Reducer:(CloudPillar) |
| Mixing motor(ZHENJIANG DALI) |
| Drive axle | LIUFENG |
| Water Supply | Hydraulic driving self-primiing pumps |
| High-Pressure Water Pump Wash | High-pressure water pump wash |
| Weighing system | Electronic weighing system (language optional) |
| Voltage | Battery 24V-100A 2 pieces |
| Hydraulic oil box | Tankage 180L, Summer:NO68 Hydraulic Oil, Winter:NO46 Hydraulic Oil, Very Cold Zone: NO35 Hydraulic Oil, |
| Water tank capacity | 520L |
| Diesel tank capacity | 180L |
| Whole weight | Complete vehicle kerb mass 7600kg |
| Cab | Prevent falling objects cab |
| Adjustable steering wheel |
| Adjustable seat |
| Seat belts |
| Fire extinguisher |
| Astern image |
| Alarm Lamp | Standard configuration |
| Radio | Standard configuration |
| Cabin A/C | optional |
| Escape hammer | Standard configuration |
| Astern sound prompt | Standard configuration |
| Walking control mode | Standard configuration:
Mechanical | Optional:Electric control |
| Model | CPM3.0 |
| Type | Integral frame chassis movable, self loading, mixing, transporting |
| Function | concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging |
| Productivity | BATCH≤15MINS, 4BATCHS(12CBM)/HOUR |
| Drive | 4 x 4 |
| Steering | Front steering |
| Engine | YUCHAI Engine: Four-Cylinder 2200RPM,85KW |
| Speed | High Speed: 36.5KM/H; Low Speed:6.5KM/H, |
| Gear number | Three forwards, three backwards |
| Fuel consumption | Idle state 2L-3L, working state 6L-8L. |
| Tyre | 16/70-20(Steel wire tyre) |
| Drum | Geometric volume 4.2 cubic meters, the best stirring 2.6-3 cubic meters |
| Spiral blade in tank | Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right |
| Tilt of mixing tank | 16° |
| mixing tank 270°discharges | The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle |
| Tipping Chute | Equipped with 2 chute for detachable to increase discharging length |
| Shovel | Shovel capacity: 0.35³ |
| Bucket discharge switch | Hydraulic gate, electric control |
| Operation Handle | Electric control button four-way guide handle |
| Moving Hydraulic | Pump:DENGHONG |
| Torque converter(CloudPillar) |
| Work hydraulic | Pump/valve: DENGHONG |
| Mixing system | Speed Reducer:(CloudPillar) |
| Mixing motor(ZHENJIANG DALI) |
| Drive axle | LIUFENG |
| Water Supply | Hydraulic driving self-primiing pumps |
| High-Pressure Water Pump Wash | High-pressure water pump wash |
| Weighing system | Electronic weighing system (language optional) |
| Voltage | Battery 24V-100A 2 pieces |
| Hydraulic oil box | Tankage 180L, Summer:NO68 Hydraulic Oil, Winter:NO46 Hydraulic Oil, Very Cold Zone: NO35 Hydraulic Oil, |
| Water tank capacity | 370L |
| Diesel tank capacity | 180L |
| Whole weight | Complete vehicle kerb mass 6800kg |
| Cab | Prevent falling objects cab |
| Adjustable steering wheel |
| Adjustable seat |
| Seat belts |
| Fire extinguisher |
| Astern image |
| Alarm Lamp | Standard configuration |
| Radio | Standard configuration |
| Cabin A/C | Optional |
| Escape hammer | Standard configuration |
| Astern sound prompt | Standard configuration |
| Walking control mode | Standard configuration:
Mechanical | Optional:Electric control |
| Model | CPM2.5 |
| Type | Integral frame chassis movable, self loading, mixing, transporting |
| Function | concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging |
| Productivity | BATCH≤15MINS, 4BATCHS(10CBM)/HOUR |
| Drive | 4 x 4 |
| Steering | Front steering |
| Engine | YUNNEI Engine: Four-Cylinder 2200RPM,76KW |
| Speed | High Speed: 32.5KM/H; Low Speed:5.5KM/H |
| Gear number | Three forwards, three backwards |
| Fuel consumption | Idle state 1.8L-2L, working state 5L-7L. |
| Tyre | 23.5-16 (Steel wire tyre) |
| Drum | Geometric volume 3.6 cubic meters, the best stirring 2.2-2.5 cubic meters |
| Spiral blade in tank | Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right |
| Tilt of mixing tank | 16° |
| mixing tank 270°discharges | The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle |
| Tipping Chute | Equipped with 2 chute for detachable to increase discharging length |
| Shovel | Shovel capacity: 0.35³ |
| Bucket discharge switch | Hydraulic gate, electric control |
| Operation Handle | Electric control button four-way guide handle |
| Moving Hydraulic | Pump:DENGHONG |
| Torque converter(CloudPillar) |
| Work hydraulic | Pump/valve: DENGHONG |
| Mixing system | Speed Reducer:(CloudPillar) |
| Mixing motor(ZHENJIANG DALI) |
| Drive axle | LIUFENG |
| Water Supply | Hydraulic driving self-primiing pumps |
| High-Pressure Water Pump Wash | High-pressure water pump wash |
| Weighing system | Electronic weighing system (language optional) |
| Voltage | Battery 24V-100A 2 pieces |
| Hydraulic oil box | Tankage 180L, Summer:NO68 Hydraulic Oil, Winter:NO46 Hydraulic Oil, Very Cold Zone: NO35 Hydraulic Oil, |
| Water tank capacity | 370L |
| Diesel tank capacity | 180L |
| Whole weight | Complete vehicle kerb mass 6600kg |
| Cab | Prevent falling objects cab |
| Adjustable steering wheel |
| Adjustable seat |
| Fire extinguisher |
| Astern image |
| Alarm Lamp | Standard configuration |
| Radio | Standard configuration |
| Cab A/C | optional |
| Escape hammer | Standard configuration |
| Astern sound prompt | Standard configuration |
| Walking control mode | Standard configuration:
Mechanical | Optional:Electric control |
| Model | CPM1.5 |
| Type | Integral frame chassis movable, self loading, mixing, transporting |
| Function | concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging |
| Productivity | BATCH≤15MINS, 4BATCHS(6CBM)/HOUR |
| Drive | 4 x 4 |
| Steering | Front steering |
| Engine | YUNNEI Engine: Four-Cylinder 2200RPM,58KW |
| Speed | High Speed: 30KM/H; Low Speed:4KM/H |
| Gear number | Three forwards, three backwards |
| Fuel consumption | Idle state 1-1.8L, working state 4L-6L. |
| Tyre | 23.5-16 (Steel wire tyre) |
| Drum | Geometric volume 2.2 cubic meters, the best stirring 1.2-1.5 cubic meters |
| Spiral blade in tank | Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right |
| Tilt of mixing tank | 16° |
| mixing tank 270°discharges | The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle |
| Tipping Chute | Equipped with 2 chute for detachable to increase discharging length |
| Shovel | Shovel capacity: 0.35³ |
| Bucket discharge switch | Hydraulic gate, electric control |
| Operation Handle | Electric control button four-way guide handle |
| Moving Hydraulic | Pump:DENGHONG |
| Torque converter(CloudPillar) |
| Work hydraulic | Pump/valve: DENGHONG |
| Mixing system | Speed Reducer:(CloudPillar) |
| Mixing motor(ZHENJIANG DALI) |
| Drive axle | LIUFENG |
| Water Supply | Hydraulic driving self-primiing pumps |
| High-Pressure Water Pump Wash | High-pressure water pump wash |
| Weighing system | Electronic weighing system (language optional) |
| Voltage | Battery 24V-100A 2 pieces |
| Hydraulic oil box | Tankage 110L, Summer:NO68 Hydraulic Oil, Winter:NO46 Hydraulic Oil, Very Cold Zone: NO35 Hydraulic Oil, |
| Water tank capacity | 240L |
| Diesel tank capacity | 110L |
| Whole weight | Complete vehicle kerb mass 5600kg |
| Cab | Prevent falling objects cab |
| Adjustable steering wheel |
| Adjustable seat |
| Fire extinguisher |
| Astern image |
| Alarm Lamp | Standard configuration |
| Radio | Standard configuration |
| Cab A/C | Optional |
| Escape hammer | Standard configuration |
| Astern sound prompt | Standard configuration |
| Walking control mode | Standard configuration:
Mechanical | Optional:Electric control |
