Welcome to visit

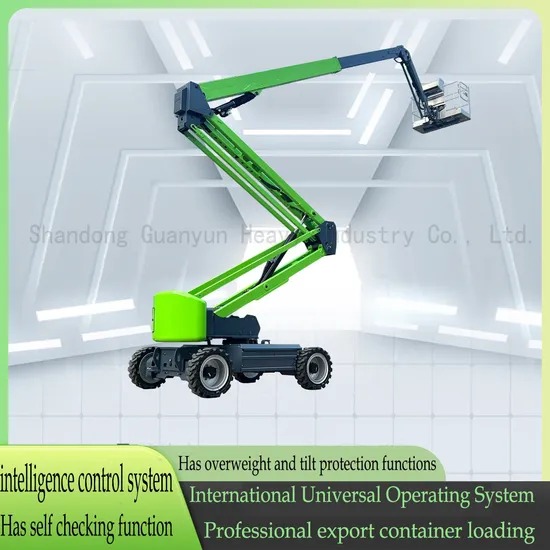

Self-Propelled Articulated Boom Lift Self-Propelled Aerial Work Lifting Platform Articulated Boom Lift

US$20,000.00-90,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
YDDCQ
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
230kg
Moves
Self-propelled
Driven Type
DC
Running Mode
Moving
Feature
Insulating
Certification
CE, ISO 9001
Rotation Angle
360
Drive Type
4X2X2
Max Climbing Grade
25%
Battery Capacity
2X24V/400ah
Fuel Tank Capacity
80L
Tire Specifications
28X9-15 Solid Tire
Max Allowable Angle of Chassis
1.5/3
Transport Package
Container
Specification
8m/10m/12m/14m/16m/18m/20m/22m/24m/26m/28m/30m
Trademark
Xinguanyun
Origin
Jinan City, Shandong Province
HS Code
8428109000
Production Capacity
1000

Packaging & Delivery

Package Size
580.00cm * 165.00cm * 235.00cm
Package Gross Weight
5800.000kg

Product Description

Model Maximum height
(m)		 load
(kg)		 Table size
(mm)		 External dimensions
(m)		 Maximum external dimensions
(m)		 Weight
(kg)
SJYZQ0.23-8 8 230 1600*800 5.2*1.65*2.35 5.3 4900
SJYZQ0.23-10 10 230 1600*800 5.5*1.65*2.35 5.8 5800
SJYZQ0.23-12 12 230 1600*800 6.3*1.78*2.35 6.9 6596
SJYZQ0.23-14 14 230 1600*800 7.0*1.93*2.35 8 6900
SJYZQ0.23-16 16 230 1800*800 7.18*2.18*2.2 8.9 8550
SJYZQ0.23-18 18 230 1800*800 8.35*2.2*2.63 10.6 9200
SJYZQ0.23-20 20 230 1800*800 8.86*2.25*2.53 11.7 11000
SJYZQ0.23-22 22 230 1800*800 11.2*2.4*3.2 12.2 13200
SJYZQ0.23-24 24 230 1800*800 11.2*2.6*3.2m 12.5 14200
SJYZQ0.23-26 26 230 1800*800 11.5*2.8*3.1m 12.8 16200
SJYZQ0.23-28 28 230 1800*800 12.3*2.8*3.2 13.2 18200
SJYZQ0.23-30 30 230 1800*800 12.8*2.8*3.3 13.6 21000
Optional work platform rotation (± 80 °) + $2000 USD Optional wireless remote control + $3000 USD
You can choose between diesel or battery power at the same price

20 Product Description

5 new hydraulic lift platform aerial work self-propelled boom lift
205 new hydraulic lift platform aerial work self-propelled boom lif025 new hydraulic lift platform aerial work self-propelled boom lift
2025 new hy Detailed Photos

Boom Lift Boom Lift Boom Lift Boom Lift Boom Lift
