ISO5752 Industrial Control Full EPDM Rubber Coated Lining Water Gas Duo Dual Plate Double Door Wafer Type Butterfly Check Valves From Tianjin Worlds Valve China

Product Description

Technical Parameters:

Size	DN50-DN600
Working pressure	16Bar	10Bar
Shell	24Bar	15Bar
Seal	18Bar	11Bar
Operating Temperature	-10ºC~+120ºC
Operating Environment	Ballast and bilge system Chemical processing Desalination plants Drilling rigs Drinking waterDry powder Food and beverage Gas plants HAVC Mining industry Paper industry Sand handling Seawater Sugar industry Thermo technical water treatment Waste water

Main Material:

Name	Material
Body	Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze
Disc	Ductile Iron Carbon Steel Stainless Steel AL-Bronze
Pin	Stainless Steel Monel K500
Seat	BUNA NBR EPDM VITON HEPDM Neoprene Hypalon Natural rubber

Executive Standard:

Design Standard	EN12334 EN14341
Inspection & Test	EN12266-1 ISO5208
End Standard	ANSI B16.1 125LB BS4504 PN10 & PN16 EN1092-2 PN10 & PN16 AS 2129-2000 Table D Table E ISO 7005 PN10 & PN16 ASME B16.5 150LB JIS B2220 5K/10K
Face to Face	EN558-1 Series16 ISO 5752 Series16 ANSI B16.10 GB/T12221 DIN3202 K3IN3202

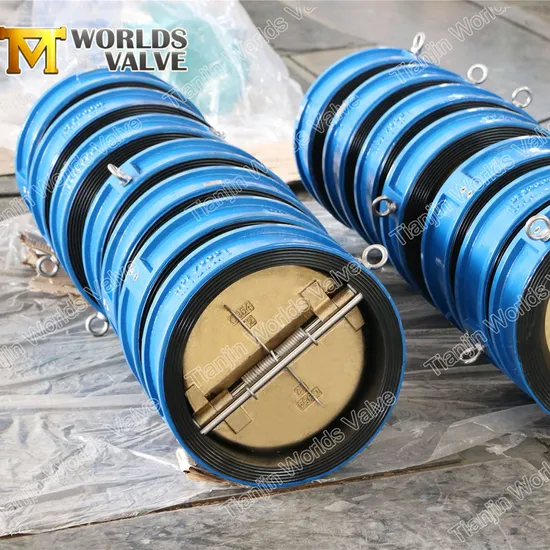

Wafer Dual Plate Resilient Seated Check Valve
Product description:
Our check valve is economically priced but with higher quality and capability than most at this market
Product Feature:
Pressure seal design.
Unique cage unit: entire seat-hinge-pin-disc assembly can be tested outside the valve before seal welding into the body. Eliminates pin seal leakage.
Easy in-line service.
Efficient operation. The hinge pin located near the center of gravity allows the conical seating face of the disc to move out and into the seat rapidly without sliding or wear. The disc pivots through a small arc preventing backflow and "water hammer".
Superior tightness: conical, lapped-in hardfaced seating is self-aligning. Valve can be used even in vertical piping with flow up.
COMPANY INTRODUCTION
**Company Goal : OEM service for world-famous valve brand.
**Design & Development ability -- SolidWorks, Pro / E, AutoCAD etc
**Dimension Measurement &Inspection
**Assembly Workshop
**Packaging
**Certificates -- CE ISO WRAS ACS certificates

---
