Fully Automatic Packaging System PE Film Cold Stretch Hood Film Food Packing Machine

Product Description

Brictec---Packaging solutions Provider for Industrial Warehousing Logistics Automation

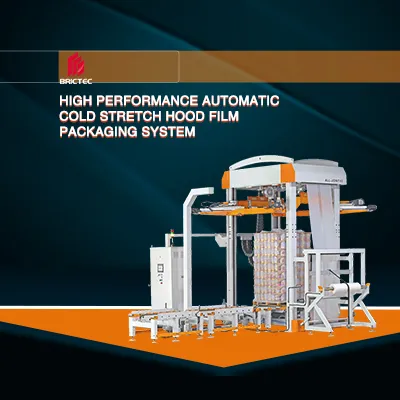

Product Introduction:Brictec automatic cold stretch hood film packing system which has a good HMI, provides convenient parametric setting, intelligent system diagnosis and automatic inspection function.
The system is easy to operate and maintain. The cold stretch hood film equipment is equipped with variety of position sensors and film stretching mechanism, and the stretching position can be adjusted continuously. The stacking profile and the stretching bag length are determined by the automatic inspection system to achieve efficient production.
Technical Parameters

Model	Unit	Brictec---ZJ-02
Conveyor speed	mm/s	Adjustable
Pallet size	mm	1000*1200 or 1100*1300
Total packing height	mm	1000-1600
Power consumption of per pallet	Kwh	0.2
Packing speed	Pallest/h	Max.60
Film thickness	mm	0.14mm or 0.12mm
Weight	KG	48000

What is the cold stretch packaging ?
A packaging method that uses a tube-shaped elastic plastic film heat-sealed at the top, and stretches horizontally and laterally at normal temperature to cover the package vertically and release the elastic film at the bottom of the tray to tightly wrap the product. It is called cold shrink film packaging, cold stretch film packaging, etc.
What is the benefits of cold stretch packaging ?
The stretch sleeve film has high tensile strength and tear strength, so it can wrap the object into a whole, preventing it from falling off during transportation. Compared with the traditional packaging form, the stretch sleeve packaging form has high efficiency and energy saving. , Good packaging, good protection, good display, etc., and the amount of packaging materials can be reduced, which can achieve the purpose of reducing packaging and reducing waste sources.
Which industries can it be applied to?
Cold stretch hood film packaging absorbs the advantages of traditional heat-shrinkable film packaging and stretch packaging, with low cost, high efficiency, complete packaging, high safety, good transparency and physical protection performance. It is widely used in glass bottles, mortar, beverages, cans, food, chemical, building materials and paper industries.
Product Features The system is easy to operate and maintain. The cold stretch hood film equipment is equipped with variety of position sensors and film stretching mechanism, and the stretching position can be adjusted continuously. The stacking profile and the stretching bag length are determined by the automatic inspection system to achieve efficient production.
1. High efficiency of cold stretch hood film.
2.Strong tear resistance and penetration resistance.
3. High clamping force and overload stability.
4. The packing size is flexible and adjustable.
5. Optional package of 5 or 6 sides.
6. Efficient, safe, reliable, beautiful and stable.
7. Adapt to the needs of packaging the high stretch rate and low clamping force bottle products and the low stretch rate and high clamping force powder bag products .
About Brictec
Xi'an Brictec Engineering Co., Ltd owns all the patents of the advanced automation technology of Italy COSMEC in China. After more than ten years of technology practice, technology accumulation, technology iteration and technology innovation, we have made outstanding achievements in industrial automation application solutions. In the practice of industrial automation, we have realized high-precision automatic intelligent control of the five key action paths of "unloading, loading, transporting, conveying and packaging". Secondly, we have carried out systematic technological upgrading and innovative development from program units, action units, sensing units, customization units and control units. At present, our advantage in the application of industrial automation is to provide full-process industrial automation application solutions. We have achieved one-stop integrated services from automatic logistics process design, automatic logistics loading and unloading system, automatic logistics transportation system, automatic logistics coding system, automatic logistics diversified packaging (film packaging, bundling packaging) system, to provide customers with unique and reliable customized full-process automation solutions.

---
