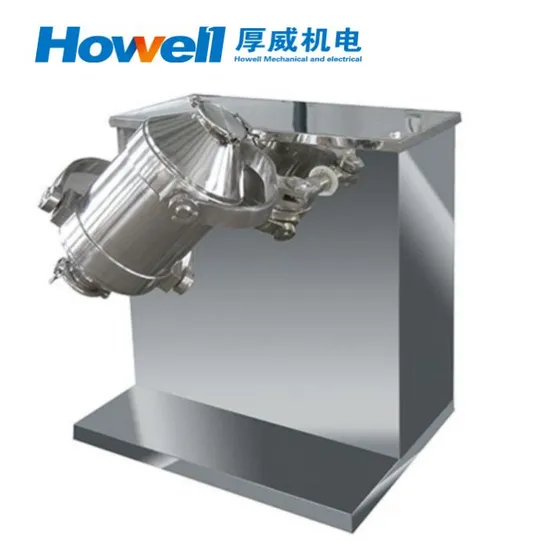

Syh-1 (3D) Three-Dimensional Motion Mixer - Industrial High Quality Pharmaceutical Chemical Mixing Equipment

Product Description

Product DescriptionHowell SYH series three-dimensional motion mixer is an advanced mixing equipment widely used in the pharmaceutical, chemical, food, and light industry. It boasts the following notable features:Working Principle: The three-dimensional mixer utilizes a unique three-dimensional movement pattern to induce complex motions within the mixing drum, including translation, rotation, and tumbling. This ensures even mixing of materials while avoiding segregation and accumulation due to centrifugal forces.
Structural Characteristics: The mixer consists of a base, transmission system, electrical control system, multi-directional motion mechanism, and mixing drum. The drum is made of stainless steel and features polished internal and external walls, ensuring no dead corners and easy cleaning. The drum boasts a high filling rate of up to 90%, significantly higher than the 40% of conventional mixers.
Performance Advantages: The three-dimensional mixer offers multi-dimensional mixing, high efficiency, strong adaptability, high mixing quality, and ease of operation. It achieves a mixing uniformity of over 99.9% with short mixing times and high efficiency. Additionally, it is suitable for mixing various types of materials, including powders, granules, and liquids.
Use case presentation
Application Fields: The three-dimensional mixer finds extensive applications in industries such as pharmaceuticals, food, chemicals, and ceramics. In the pharmaceutical industry, it is used for preparing various APIs, excipients, and coating materials. In the food industry, it is used for mixing ingredients like flour, sugar, milk powder, and chocolate.
Detailed Photos
Product Parameters

Model		Overall size (mm)			Cylinder volume (L)	Maximum loading capacity (L)	Maximum loading weight (kg)	Mainshaft speed (r/min)	Motor power (kw)	Weigh (kg)
		Length	Width	Height
SYH-1		500	600	600	1	0.8	0.5	15~30	0.12	50
SYH-5		600	1000	1000	5	4	2.4		0.25	150
SYH-15		700	1000	700	15	12	7.5		0.37	200
SYH-50		1000	1400	1200	50	40	25	0~8	1.1	200
SYH-100		1200	1700	1500	100	80	50		1.5	500
SYH-200		1400	1800	1600	200	160	100		2.2	800
SYH-400		1800	2100	1950	400	320	200		4	1200
SYH-600		1900	2100	2250	600	480	300		5.5	1500
SYH-800		2200	2400	2300	800	640	400		7.5	2000
SYH-1000		2250	2600	2600	1000	800	600		7.5	2500

Company Profile
Nanjing Howell Electromechanical Equipment Co., Ltd. was established in 1999, with its predecessor being Nanjing Ma Du Electric Heating Equipment Factory. After more than two decades, the company has gathered a team of professional talents in the field of electromechanical research and design. In 2001, the company passed the ISO9000 quality system certification, and has provided various high-quality products to users at home and abroad for many years.
Our company provides standardized and customized drying equipment, mixing equipment, and refrigeration and freezing equipment for customers in different industries.
After years of industry experience, our company has high-quality and innovative design and production capabilities, providing users with powerful technical support to make profits.
Enterprise Culture
Tenet -- Innovation Perfection
Spirit -- Enthusiasm Sharing Positive
Principle -- Quality Service
Objective -- Continuous progress makes the leading brand
Warmly welcome your advice and ordered a call!

---
