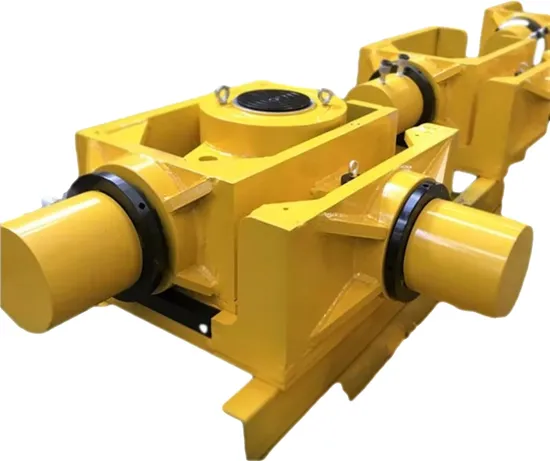

Customizable Propulsion Intelligent 3D Hydraulic Oil Cylinder Lifting Jack Machine for Industry Bridge Construction

US$580.00-14,900.00 1 Piece (MOQ)

Basic Info.

Model NO.
3D-3
Structure
Hydraulic Jack
Power Source
Electric
Max Height
>400mm
Certification
ISO 9001:2008
Condition
New
Non-Standard
Customizable
Transport Package
Wooden Box Packaging
Specification
as model
Trademark
YueZhenQin
Origin
China
HS Code
8425421000
Production Capacity
100000000

Product Description

With the progress of society and technology, more and more bridges stand on both sides of seas, lakes and rivers. Construction across highways, railways, rivers and roads has become the norm.
Due to its reasonable structure and stress characteristics, composite structure bridges have been increasingly used in large-span bridges, across high-speed railways, across ports with navigation requirements and major roads with safe driving requirements. Affected by such complex working conditions, in order to ensure the safety of construction, it is necessary to assemble the steel beams in a safe place and then push them to the designated position as a whole. The intelligent three-dimensional walking push device is an efficient bridge construction technology developed by our company. It can realize the control of multiple push units by one master control unit, and use displacement sensor technology to achieve precise control of displacement, complete vertical lifting, and synchronous work and correction of longitudinal and horizontal push. The control system is modular, with small working space, safe and efficient, convenient construction and low cost. It is an intelligent and advanced bridge construction technology.
Carrying capacity T Stroke mm Maximum working pressure
Mpa
Outline Size
L*B*H(mm)
Model Z X Y Z X Y
SWD250 250 50 50 240 150 600 70 1900*990*680
SWD400 400 100 100 240 150 600 70 1990*1090*700
SWD600 600 100 100 240 150 600 70 2075*1170*720
SWD1200 1200 150 150 200 150 600 70 2620*1097*683
