Spray Drying Equipment of Compound Fertilizer Powder

Product Description

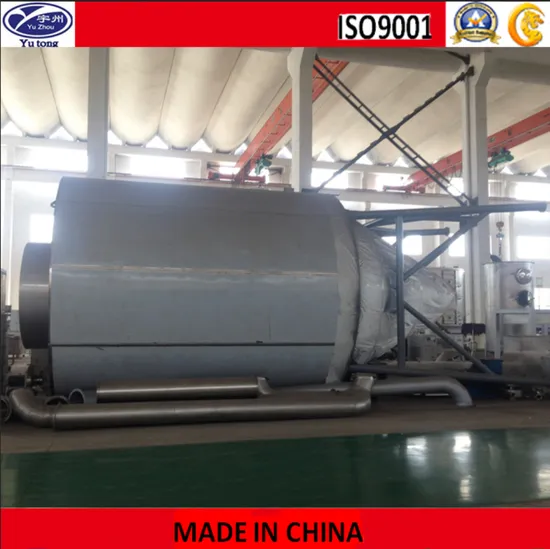

Spray Drying Equipment of Compound Fertilizer Powder
Features
1.LPG Spray Drying Equipment of Compound Fertilizer Powder with fast drying speed can constantly evaporate 95%-98% moisture. The drying time is about 5 seconds to 15 seconds. This Spray Drying Equipment of Compound Fertilizer Powder is especially suitable for thermosensitive substance.
2.This Compound Fertilizer Spray Dryer has excellent uniformity, liquidity and solubility as well as high purity.
3.This Compound Fertilizer Spray drying machine has simple production process and easy operation. After drying, it does not need to grind and screen, which can reduce production procedure and enhance the purity.
Description
Centrifugal Spray Dryer for Compound Fertilizer is a kind of dedicated equipment for drying emulsion, suspension, paste and solution. After filtering and heating, the air enters into the hot air distributor at the top of the Centrifugal Spray Drier for Compound Fertilizer, and the hot air will spirally and evenly goes into the drying chamber. The material liquid via high-speed centrifugal atomizer rotates into extremely thin vaporific liquid globule and parallelly flows with the hot air, and then the liquid will be dried into powdery products in a very short time (5-10 seconds). The waste gas after filtering will be expelled through the fan. For the wet organic solvent materials, the Compound Fertilizer spray drying machine can be designed with closed cycle process. It can utilize cyclic nitrogen to dry the materials.
Process
Technical parameter

Item/Model	LPG
	5	25	50		100	150		200-2000
Inlet Temperature (ºC)		≤ 350
Outlet Temperature (ºC)		80 to 90
Maximum Moisture Evaporation (kg/h)*	5	25	50		100		150	200-2000
Drive type of Centrifugal Spray Nozzle	Compressed air drive	Mechanical drive
Rotating Speed	25000	22000		21500	18000	18000		15000
Diameter of Spray Disk (mm)	50	102		108	108	150		180-340
Heat Source	Electricity	Electricity		Electricity+ steam, fuel oil, gas	Electricity+ steam	Electricity+ steam, fuel oil, gas		Depending on users
Maximum Power of Electric Heating (kw)	8	31.5		60	81	99
Overall Dimensions (L × W × H)	1.8 × 0.93 × 2.2	3 × 2.7 × 4.26		3.7 × 3.2 × 5.1	4.6 × 4.2 × 6	5.5 × 4.5 × 7		According to the actual situation
Dry Powder Recovery (%)	≥ 95	≥ 95		≥ 95	≥ 95	≥ 95		≥ 95

Yutong Aptitude:
Yutong Patent:
Jiangsu Yutong Drying Engineering Co., Ltd factory:
Package And Shinment:
Standard Wooden Cases
Pre-service
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents meet customer`s requirements.
After-sale service
Provide considerate services to minimize clients` worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
Principle of work matters that should be known before order:
1. What is Particle liquid name and materials property, solid contents or water contents, viscosity, surface tension and PH value.
2. Powder material contents after the drying, permissible residual water contents, particle size, and permissible maxing temperature.
3. Energy that can be supplied: steam pressure supply capacity, electricity capacity, fuel coal, oil and air capacity?
4. Control requirement: how many celcius the inlet air temperature need to be controlled?
5. Powder collection requirement: whether or not the bag type collector should be mounted and what is the requirement of the environment for discharging the exhausted gas?
6. Other special requirements.

---
