China′s Best-Selling Open Rubber Mixer Rubber Machinery

Product Description

Product Description

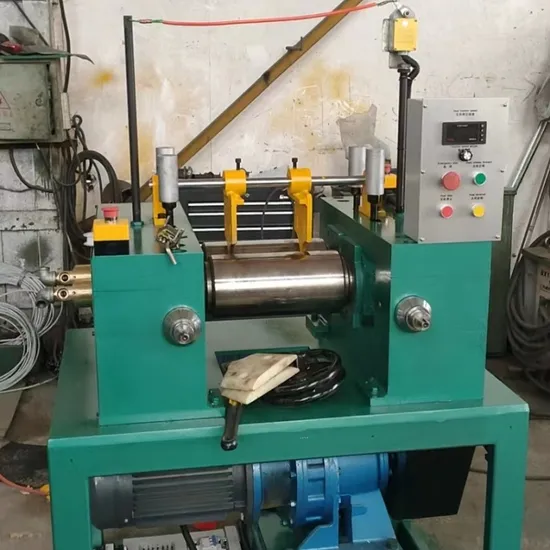

The open rubber mixing machine has two horizontally arranged rollers, and the machinery for mixing rubber (plastic) between the two rollers is referred to as the open rubber mixing machine. It is mainly composed of roller, frame, pitch adjusting device and transmission device. The material is pulled into the gap between the two opposite rotating rollers at different linear speeds under the action of friction, and the barrel material is strongly cut and squeezed through the gap of the rollers, so that the temperature of the material is increased, and the plasticization is increased, so as to achieve the purpose of rubber refining, for plasticizing, mixing, pressing and hot refining operations.The role of the opening mill: mainly used in rubber mixing, plasticizing, out of the sheet.
1. Plasticizing, crushing, washing and pressing of raw rubber;
2. The mixing and pressing of plastics and the magazines in plastics are clear;
3. Hot mixing of rubber;
4. Crushing, mixing and pressing of recycled rubber;
5. It is also used in the processing of plastics and the production of paint and pigment industry.
Detailed Photos
Bearing type single shaft output or double shaft output can be used to directly link the roller model with universal coupling. With low failure rate, safe and reliable function; The reducer adopts hard tooth surface reducer, with low noise, small vibration, smooth operation and other remarkable characteristics. On this basis, different configurations can also be added according to customer requirements.
Product Parameters

	XK-160	XK-230	XK-250	XK-360	XK-400
Working diameter of rollers(mm)	φ160	φ230	φ250	φ360	φ400
Working length of rollers(mm)	320	600	620	900	1000
Linear Speed of front rollers(m/min)	8.03	10.94	14.1	16.25	18.65
Speed ratio of front and rear roller	1:1.35	1:1.19	1:1.17	1:1.25	1:1.27
Capacity per batch(kg)	1~2	6~10	10~15	20~25	18~35
Motor Power(kw)	7.5	15	18.5	30	37
Overall size L*W*H	1380*860*1320	2800*1200*1120	3000*1500*1500	3850*1650*1750	4250*1850*1870
Weight(kg)	1000	2300	3000	6500	7000
Notes	Nylon bush use grease for lubricating,Copper bush and bearing use grease or oil

	XK-450	XK-560	XK-610	XK-660	XK-710	XK-810
Working diameter of rollers(mm)	φ450	φ560/φ510	φ610	φ660	φ710	φ810
Working length of rollers(mm)	1200	1530/1830	2000	2130	2200	2540
Linear Speed of front rollers(m/min)	24.5	27.87	30	28.6	31.9	32
Speed ratio of front and rear roller	1:1.27	1:1.2	1:1.29	1:1.24	1:1.15	1:1.27
Capacity per batch(kg)	25~50	50~100	90~120	130~165	150~200	180~250
Motor Power(kw)	55	90/110	160	185/250	285	2*250
Overall size L*W*H	5200*1800*2000	6500*2300*2000	7500*2500*2640	7600*3400*2500	8246*3556*2270	9736*5160*2070
Weight(kg)	10000	20000	28000	47000	51000	74500
Notes	Nylon bush use grease for lubricating,Copper bush and bearing use grease or oil

Certifications
Company Profile
Qingdao Junlin Machinery Co., Ltd. is a company engaged in rubber machinery, shoe machinery research and development and manufacturing enterprises, located in the west coast of Qingdao, Shandong, China, the geographical environment is superior.
The company gathers a large number of outstanding technical and management talents in the industry, with advanced machining equipment and precision testing instruments. Relying on high-quality service, advanced equipment and excellent technical strength, through continuous innovation and development, Junlin Machinery has established a stable business relationship with many customers at home and abroad, and gradually established a brand position in similar enterprises.
The main products of the company are: open rubber mixing machine series, waste tire rubber recycling production line series, calender, extruder, filter rubber machine series, film cooling line series, plate vulcanization machine series and so on.
Our Advantages
The company has T150 large floor boring machine, 2m×6m large planer milling machine, MQ1350A×3000 cylindrical grinding machine, M7150×2000 surface grinding machine, C62100B×5000 large lathe, C61110×3000 large lathe, C6180×3000 large lathe, C6125×3000 large car Bed, T611B horizontal boring machine, CNC lathe and a series of advanced processing equipment, according to customer requirements to produce a variety of special rubber machinery equipment.

---
