30W C Band 5.8g PA Power Amplifier for Drone and Satellite Jammer

Product Description

PRODUCT DESCRIPTION:

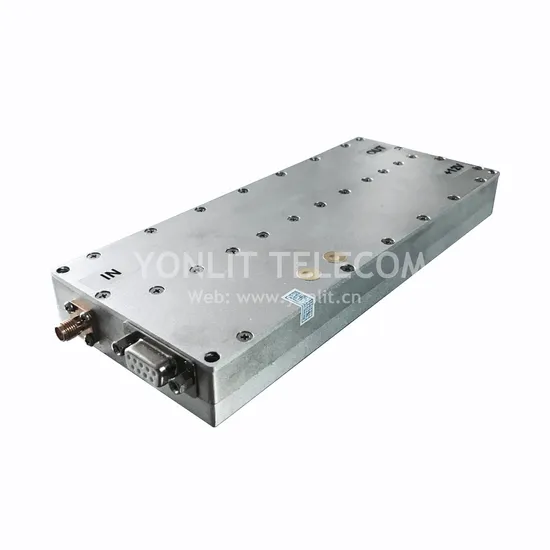

This Power Amplifier module is working for 5.8G C band, model type: PWR-C-200 with aluminum case, it need operating on heatsink.
This product are using GaN technology, power range can be customized from 40-50dBm. PA are equiped with over-high VSWR and over-high power protection to avoid/reduce the damage from any misoperation. I/O Port is compatible with DB9 serial port.
More function and parameters are avaiable to customized according to actual requirement.
MAIN SPECIFICATION:

Item			Parameters
Frequency Range			5.2-5.4GHz, 5.5-5.6GHz, 5.7-5.9GHz
Gain			>40dB
RF Output Power		30W	43dBm
Input Level			10-15dBm
In-Band Ripple			1dB
Input VSWR			≤1.5
Output VSWR			≤2
Working Voltage			12VDC
Working Current			9A
Harmonics			≥12dBc @Odd harmonics, ≥15dBc @Even harmonics
Spurious			>60dBc @CW
In/Out Impedance			50ohms
RF Input Port			SMA -Female
RF Output Port			SMA -Female or NK
Power Interface			Pull-core capacitor
Working Temperature			-20~65ºC
Efficiency			≥25% @CW
Dimension			About 180x91x26, 170x100x25mm
Protection (Optional)			Shutdown over more 70ºC, Auto-restart less than 50ºCor after 30s
			Shutdown over Output High-VSWR
I/O Port Definition	DB9,Male (Optional)		PIN1: VSWR (VSWR ALarm)
			PIN2: TEMP (Temperature ALarm)
			PIN3: V+ (Forward Power indicator) (0-4V)
			PIN4: Vt (Temperature indicator,-40 to 150, 0.1-1.5V)
			PIN5: GND (Grounding)
			PIN6: V- (Reversed Power indicator) (0-4V)
			PIN7: Vc (Current Indicator) (0-4V)
			PIN8: PTT (Enable PA. Grounding or Hang in air: ON; +5V: OFF)
			PIN9: ALC (0-5V input, 5V: MAX Output Power,0V: Min Output Power)
	Pull-Core Capacitor (Optional)		SWR: VSWR Alarm over High-VSWR (+3V), and PA shutdown
			TEMP: Alarm Over High-Temperature (+5V), and PA shutdown
			GND: Grounding
			Vt: Indicator for Temperature, Vt=0.5V+TC×10mV/ºC;
			V+: Indicator for Forward RF Power (Max:5V)
			PTT: Enable PA, 5V: PA OFF; Hang in air or grounding: PA ON
	DB9 Male RS485 (Optional)		PIN1,PIN2: RS485A; PIN3,PIN4: RS485B; PIN5: GND
			Data Protocol: China Mobile Standard
PS: Items marked with "Optional" are not standard items, if need those functions should info us before production.

PAYMENT TERMS, ORDER INFO & PACKING

We accept T/T and Western Union for payment.
Leadtime within 1 month, subject to actual requirement might have change.
Product will got packed in carton with foam, each unit will have single box for packing.
If need more information, please send us email.

Contact Info:
Leo Xu "Better late than never..."
Shenzhen Yonlit Telecom Technology Co., Ltd.
Website: http://yonlit.en.made-in-china.com, https://yonlit.en.made-in-china.com, https://yonlit.en.made-in-china.com
Tel: +86-755-36850195
Add: No.B401-403, QinYe Building, XinAn Sixth Road,Subdistrict 82, BaoAn District, Shenzhen, China.

---
