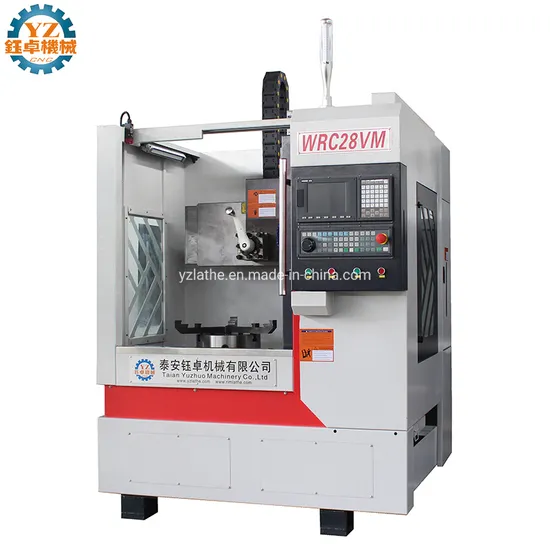

Wrc28vm Easy Operation Good Service Linear Guide CNC Vertical Wheel Repair Lathe

Product Description

Heavy Duty Linear Guide CNC Vertical Lathe Wheel Repair Machine

Product Description
Vertical Wheel CNC Lathe Specification

NO	Specification Item	WRC28VM
1	Max.process diameter of wheel	28 inch
3	Chuck diameter	320mm
4	Spindle speed	50-1500rpm
5	Cutting speed	0.1-1000mm/min
6	Max. travel	X/Z: 410/400mm
7	Rapid speed	X/Z: 8000mm/min
8	Tool post	Manual 4 position tool post
9	Section of tool post	25x25mm
10	Feed motor power	X/Z: 1.6 kW /10NM
11	Linear guide nominal width	X/Z :30/30MM
12	Accuracy	0.015mm
13	Repeatability	0.012mm
14	Main motor power	7.5KW
15	Dimension	1460×1570×2030mm
16	Weight	1300KG

Standard Components
1.Diamond Cutter
2.3-Jaws Manual Chuck(With Special Soft Jaws)
3.Diamond Digital Probe Tip
4.Taiwan SYNTEC Controller
5.Manual Quick Change Toolpost,Four-station;
6.Work Lighting System;
7.Automatic Lubrication System;
8.Cooling System;
9.Full Cover (Security Guard Door);
10.Accesssories Tools and Tool Box
11.Wheel Curve Optimize Software
Services:
1-After-sales services: Warranty is one year; we would offer the parts (quality problem) free of charge during this period, freight collect.
2-Alloy Wheel Refurbishemnt Advice from REAL WORLD experts in the Diamond Cutting and Alloy Wheel Refurbishment industry
3-Mechanical Support
4-Software Support
5-Comprehensive Training
6-Probe alloy wheel profile
Just PROBE & Diamond CUT !
Once the machine has automatically probed the wheel profile there is no need for you to waste time programming our Alloy Wheel lathe we have taken care of that for you. Just cut the wheel and store the profile on the system. Build up a library of Alloy wheel profiles.We saved you time so you can cut more wheels!
The machine work steps
1-Probe alloy wheel profile,transformation G code
2-Diamond cut the wheel.

Vertical Wheel CNC Lathe Machine Photos
Company details
Contact information:

If you Need our Vertical Wheel CNC Lathe Machine, contact with :
Sunny Zhang
Sales Manager

---
