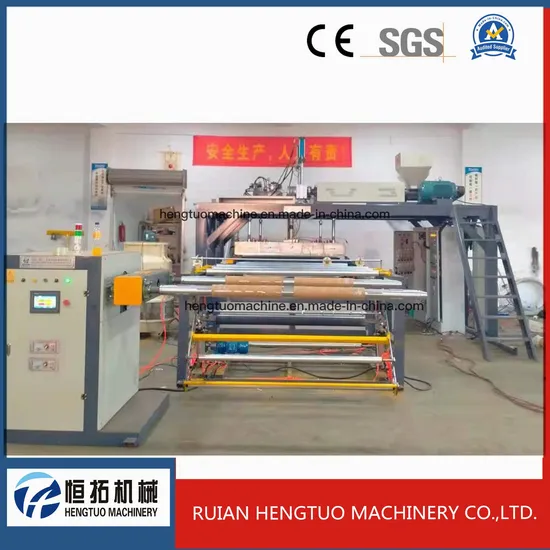

Double Screw 3 Layer Air Bubble Wrapping Sheet Plant Bubble Film Making Machine

Product Description

HT-1000/1200/1500/1800/2000... Polythylene Air Bubble Film Making Machine for Air bubble sheet
Usage:
PE Air bubble film making machine adopts once-through shaping technique, thus has high efficiency and excellent product quality. This machine set has such features as scientific and reasonable structure design, smooth and reliable running and convenient operation and maintenance.
Polyethylene air-cushion film (also called polyethylene bubble film), which is divided into two kind: ordinary polyethylene air-cushion film and composite polyethylene air-cushion film, is a kind of packing material which has been widely used at present. It not only has good cushioning effect, shock resistance and heat-sealing performance, but also has such advantages as good corrosion resistance and transparency , etc. So it has been widely used for packing, household wares, post parcel, bicycle , polyurethane furniture, etc.
Single Screw Double layers PE Air Bubble Film Making Machine
Characteristics
1. Screw and cylinder are all made of 38 CrMoALA after nitrogen treatment, which has an advantage of corrosion resistance and endurance, etc.
2. The cooling device adopts cycle water cooling which provide the best transparent effect of the bubble film
3. Rewinder adopts with double station auto changer, optional is auto cutter .

Model	HT-1000	HT-1200	HT-1500	HT-2000
Screw Diameter	60mm	65mm	75mm	90mm
Film Width	1000mm	1200mm	1500mm	2000mm
Max output	50kg/h	65kg/h	80kg/h	100kg/h
Main Motor Power	15kw	15kw	18.5kw	37kw
Power	28kw	38kw	50kw	80kw
L/D	30:1	30:1	30:1	30:1
Power Supply	customized	customized	customized	customized
Weight	4000 kgs	4200 kgs	4500 kgs	7000 kgs
Dimension	9×3.5×2.5	9.5×3.8×2.5	10×4×2.6	11.5×4.8×4

Double Screw 3 layers PE Air Bubble Film Making Machine Line


Company Information
RUIAN HENGTUO MACHINERY CO.,LTD. located in Ruian City, Zhejiang Province,China.is an innovative enterprise which integrates packaging machinery with professional scientific research and development, design and manufacturer, sales and after-sales service.
Main products: Three layer co-extrusion stretch film making machine, Double extruder stretch film making machine, single extruder stretch film making machine, bubble film making machine, compound bubble film making machine, film blowing machine, printing machine, bag making machine.film blowing machine, etc.
Automatic Air Bubble Film Making Machine, Polyethylene Bubble Film Making Machine, PE Bubble Film Extrusion. Air Bubble Film Making Machine is suitable for producing Polyethylene Bubble Film in all shapes.
The machine adopts once-through shaping technique, thus has high efficiency and excellent product quality.
Warehouse
Packing & Shipping
1.Machine will be tested before shipping
2.Packing: If shipped FCL,stretch film wrapping with anti rust treatment;If shipped LCL,stretch film wrapping with anti rust treatment,wooden case packege.
FAQ
Q. Are we manufactory or trade company?
A. We are manufacture.
Q. What kind machines we produce?
A. Our factory produce plastic machines, we have plastic film extruder, bag making machine, film blowing machine and plastic bag printing machine, plastic recycling machine, etc.
Q. What kind payment we accept?
A. Payment term like T/T, L/C.
Q. Can we produce the machine as customer costom order?
A. Yes.it's negotiable.
Q. Can customer send worker or technician here to study the operation of the machine?
A. Yes.
Q. The lead time?
A. According to different machine model and configuation, from 30 days to 60days.

---
