Product Details
Product Description
Product Description

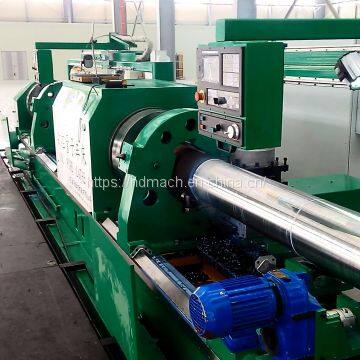

HYSK-1332Z CNC lathe is the special machine for turning cylindrical for drill collar, oil drilling rigs and mandrel etc. Use three guide rail, main headstock, auxiliary headstock, support guide rollers are on the same pair guide rails, dual big carriages are on the other pair guide rails. Four 4-jaw chuck clamp workpiece, Z direction use gear and rack transmission, driven by servo motor, X direction use ball screw, driven by servo motor. Dual way cutting, compared with traditional universal lathe, the machining quality and efficiency are promoted.
Items
| Unit
| HYSK-1332Z
|
Max. swing diameter over bed
| mm
| 900
|
Max. work piece length
| m
| 12
|
Spindle bore diameter
| mm
| 320
|
Max. machining diameter
| mm
| φ310
|
4-jaw chuck diameter
| mm
| φ630
|
3-jaw chuck diameter
| mm
| φ630
|
Guide way width
| mm
| 1200
|
Spindle center height
| mm
| 1100
|
Cutter bar section size
| mm
| 40×40
|
Cutter station number
|
| 4+4
|
Spindle speed range（stepless）
| r/min
| 5～320
|
Two chucks clamping distance
| mm
| 2300
|
Z-axis Max. travel（dual carriages）
| mm
| 3200
|
X-axis Max. travel（dual X）
| mm
| 400
|
Rapid movement speed (Z)
| m/min
| 8
|
Rapid movement speed ( X)
| m/min
| 6
|
Control system
| set
| 2
|
Auxiliary headstock moving mode
|
| Manual
|
Motor power
| kW
| 37
|
Machine weight
| kg
| 22000
|
Machine dimension（L×W×H）
| mm
| 10000*2300*1800
|
>>
