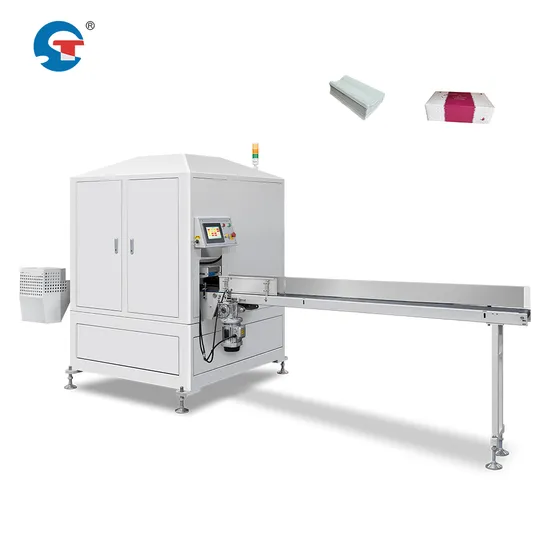

Paper Cutting Machine That Can Automatically Connect with Soft Paper Packaging Machine

US$25,000.00 1 sets (MOQ)

Basic Info.

Model NO.
ST-200
Paper Core Usage
Paper Cutting Machine
Tube Machine Type
Paper Cutting Machine
Gumming Type
Paper Cutting Machine
Layers of Roll Paper
Paper Cutting Machine
Reelpipe Speed
Paper Cutting Machine
Wall Thickness of Paper Tube
Paper Cutting Machine
Certification
CE
Condition
New
After-sales Service
One Year Warranty
Air Supply
0.5MPa-0.8MPa
Processing Type
Cutting Machine
Dimension(L*W*H)
2160X1380X1850mm
Showroom Location
Egypt, UAE
Round Knife Size
610mm
Raw Material
Paper
Weight
1500 Kg
Warranty of Core Components
1.5 Years
Name
High Speed White Soft Tissue Paper Logsaw Machine
Product Type
Facial Tissue
Capacity
60-200 Cuts/Min
Cutting Length
Can Be Freely Set
Voltage
380V 50Hz
Power
10kw
Transport Package
Export Stand Wooden Case Packing
Trademark
SHENGTAI
Origin
Zhejiang, China
Production Capacity
10 Set/Sets Per Month, 60-200 Cuts/Min

Product Description

Facial Tissue Paper slitting machine cut to pieces cutting machine
Product profile
Product profile
Main technical parameters:
Item/model
 ST-200 (single passage)
Raw material specification
 Width 45-110mm adjustable, thickness 60-120mm adjustable
(products of other sizes can be customized)
Production capacity
 60-200 (cuts/minute)
Cutting length
 Can be freely set (within the adjustable range)
Round knife size
 Φ610mm
Power
 Three-phase four-wire
380V 50Hz 10KW
Air supply
 0.5Mpa-0.8Mpa
Air consumption
 120-160L/H
Main machine part
 L2160×W1380×H1850mm
Machine weight
 1500KG


Electrical List:
No.
 Item Name
 Brand
 Country
1
 Touch Screen
 Omron
 Japan
2
 PLC
 Panasonic
 Japan
3
 Frequency
 Panasonic
 Japan
4
 Photoelectric switch
 Omron
 Japan
5
 Proximity switch
 Omron
 Japan
6
 Intermediate Relay
 Omron
 Japan
7
 Button switch
 Schneide
 French
8
 AC contactor
 Schneide
 French
9
 Emergency stop switch
 Schneide
 French
10
 Magnetic valve
 JELPC
 Germany
11
 Decelerating motor
 HANXING
 China
12
 Servo Motor
 Delta
 Taiwan
13
 Timing belt
 Panasonic
 Japan

(This list is for reference only,in the actual production there may be some difference with this list)
