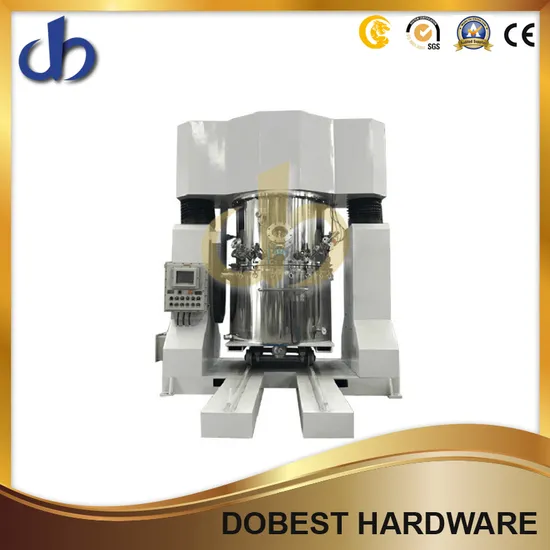

500L High Speed Chemicals Ink Paint Dispersion Stirrer Mixer Machine

Product Description

500L High Speed Chemicals Ink Paint Dispersion Stirrer Mixer Machine:
1.Brief Introduction
The double planetary mixer adopted advanced technology, which is widely used in dispersing mixing middle or high viscosity liquid-liquid/solid-solid/liquid-solid material, such as adhesives, sealant, silicone rubber, glass glue, solder paste, quartz sand,battery paste, electronic slurry, lithium battery slurry, polyurethane, coating, pigment, dyestuff, synthetic resin rubber,ointment and etc for for electronics, chemical, pharmaceutical, construction and agricultural industries.which the viscosity is app. from 5000cp to 1000000cp. Planetary Mixer Structure: Double Twist Mixing Head Double-layer high speed dispersing head Scrapper Emulsifying head
The mixing head combination forms are tailored for different process. Impeller blade, Dispersing disc, Twist impeller and Scraper
are optional.
2.Application
Widely used in mixing, dispersing and dissolving liquid and solid including paint, pigment, ink, pesticide, dye, resin, food etc
3.Features:
Model: mechanical lift, hydraulic lift
Mixer shaft: single shaft, double shaft
Motor power:1.1KW-45KW
Material:SUS304 stainless steel / SUS316L staineless steel
Stepless frequency converter supplies various rotation rate for different grinding material
Ex-proof system can be customized as requirement
Holding clamp: device can be set for the vessel as per your need.
Mixing tank: custom-made Including single layer& double jacket(with cooling, heating, vacuum system or not) open-top type, sealed type; flat-bottom, round-bottom, cone-bottom; flat lid, round lid etc..
4. Technical Parameter:

1	Vacuum Degree	-0.098MPa
2	Structure	Gantry Type
3	Rotation Speed r/min	Revolution:0~42r/min,Rotation:0~66r/min( Frequency-converting); High speed:0~980r/min( Frequency-converting).
4	Slow Shaft	Two set ribbons, two set bottom scraper and one set wall scraper.
5	Fast shaft	Single fast shaft with two Φ200 dispersion disk structure, no hole in the middle of dispersion disk ( or with two above butterfly stirrers )
6	Lifting mode of vessel cover	Hydraulic
7	Lifting height of vessel cover	1000mm
8	Mode of Temperature Measurement	Temperature detector fixed on scraper, rotation electric conduction device inside, temperature detector contacting material, it is exact for measurement, the patent no. of this device is Z200520112283.5.
9	Location of vessel	Adopt guiding device for pushing and location way of arc plate, lugs structure on the vessel, ensure the middle location.
10	Lock of vessel	Mechanical manual lock

APPLICATION
DETAILED PHOTOS
PACKING AND DELIVERY

---
