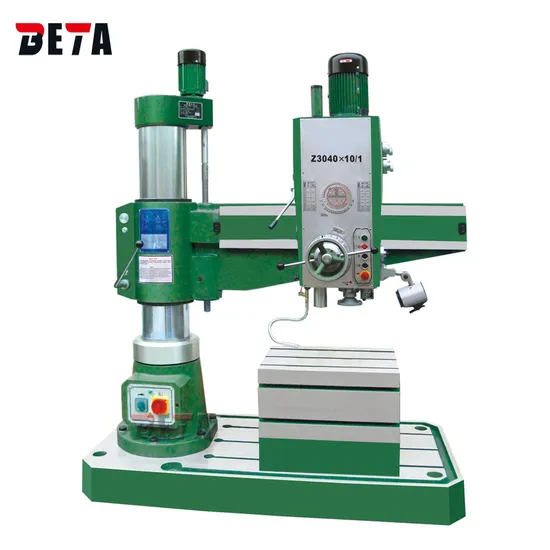

New Z3040X10/1 High Precision Radial Drilling Machine From China

Product Description

New Z3040x10/1 High Precision Radial Drilling Machine From China

Model	Unit	Z3032x10/1, Z3040x10/1
Max. Drilling capacity	mm	32/40
Distance spindle axis to column generating line	mm	300-1000
Diameter of column	mm	240
Taper of spindle		MT4
Spindle travel	mm	280
Spindle speeds range	r/min	32-2500
Spindle speeds series	step	16
Spindle feeds range	mm/r	0.1-1.25
Spindle feeds step	step	8
Range of spindle feeding	mm/r	0.10~1.25
Speed of arm elevating	m/min	1.27
Radial arm rotation angle	degree	360
Max. spindle nose to base	mm	220-1000
Dimension of worktable surface	mm	600x450x450
Dimension of base	mm	1710x800x160
Overal size	mm	1760x800x2050
Spindle motor power	kW	2.2
Arm elevating motor power	kW	0.75
Clamping column motor power	kW	0.37
Cooling motor power	kW	0.09
G.W/N.W	kg	1830/1920
Packing dimension	mm	1870x970x2200

Features: With wide range of speed and feed, with manual, power and fine feeds. The feed of machines are very easily engaged and disengaged at any time. With safe and reliable feed safety machine, all parts easy operation and change. All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achieved by hydraulic power. Main parts are made by machine center which import from KIA with high precision and efficiency, ensuring reliability and high quality. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts. Spindle parts are made by special high quality steel head treatment to be made by first class equipments, ensuring high strength and durability. Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
Standard accessories:
Box shape worktable, Taper sleeve, Tool releasing wrench, Drift, Eyelet bolts
Radial drilling machine is a type of drilling machine where the radial arm can rotate and lift around the column, and the spindle box usually moves horizontally on the rocker arm. When machining holes on a vertical drilling machine, the alignment between the tool and the workpiece is achieved through the movement of the workpiece, which is obviously very inconvenient for some large and heavy workpieces; The radial drilling machine can be aligned by moving the position of the tool shaft, which brings great convenience to machining holes on large and heavy workpieces in single and small batch production.
It can also be called a radial drill. It is a hole processing equipment that can be used for various forms of processing, such as drilling, expanding, reaming, tapping, and scraping the end face. According to the clamping structure of machine tools, radial drills can be divided into hydraulic radial drilling machines and mechanical radial drilling machines. Among various types of drilling machines, radial drilling machines are easy to operate, flexible, and have a wide range of applications. They are typical and particularly suitable for single piece or batch production of holes with large porous parts. They are common machine tools in general mechanical processing workshops.

---
