Diamond Wire Saw for Marble, Granite and Concrete

Product Description

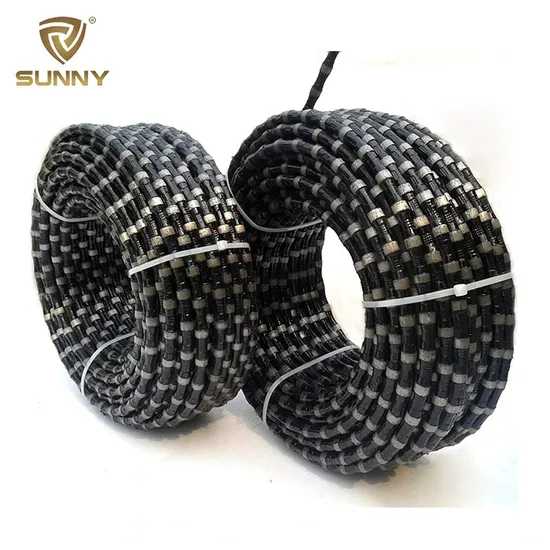

Product Description Diamond Wire Saw for Granite Marble Quarrying
Product Description
Diamond wire saw is an environmental, high-efficient, safe cutting tool which is a specially designed for cutting and separating large steel reinforced concrete or stone block at quarry. By the high-speed drive from oil hydraulic motor, the diamond wire saw with certain amount diamond beads on it surround cut the object. Under certain tension, the wire saw grind and cut the objects, and the chipping and heat is took away with cooling water, the concrete and stone block are separated into several parts in this way finally.
No matter what kind of your stone are going to be cut, we always have a suitable diamond cutting disc for you with competitive price. If you want know more about our W shape segment granite cutting disc, please ask our engineers for more.You can get a response within 24 hours.
Advantage
1. Factory Directly: Cost-effective, OEM Service available.
2. Professional R&D Team: Strong and professional technical support.
3. Strict Quality Control: Advanced inspection equipments and skilled inspectors.
4. Young & Dynamic Sales Team : Prompt reply and excellent service.
5. One-stop Service : We have a full line of diamond tools.
6. Founded in 1993 : More professional and experienced in making diamond tools.
Feature
♦ Connected by best quality rubber, placstic, spring.
♦ 100% Germany made steel cable.
♦ High concentration of Cobalt.
♦ Industrial grade diamond powders
♦ Very less breakage ratio when cutting
♦ Automatic production ensures stable quality performance.
♦ Safe, high efficiency and environmental.
♦ Quality: 90% of Italy Quality And 30% Of Italy Price
Specification

Diameter(mm)	Applications	Coating	Bead/m	Cutting Speed(m2/h)	Wire Life(m2/m)
Φ11.5/Φ10.5	Reinforced concrete	rubber+spring	40	0.5-5	0.5-8
Φ11.5/Φ11.0	Granite mine/quarry	rubber/rubber+spring	40	2-12	7-22
Φ11.5/Φ11.0/Φ10.5	Marble mine/quarry	spring/spring+plastic	28-40	4-20	15-50
Φ11.0/10.5	Granite & marble block	plastic/rubber	37/40	6-30	7-50
Φ8.8/Φ8.5	Granite&marble profiling	plastic/rubber	33/37/40	7-30	7-40
Φ7.2/Φ8.5	Granite slab	plastic	37	0.5-1.6	6-15

Attention 1. Checking the saw regularly and adjust timely.
2. Checking the pearl abrade regularly,Avoid the eccentric wear
3. Checking the joint regularly and adjust timely.
4. The tension of ropes is 250-300kg(Φ4-5mm ropes)
5. Water supply is around 15-25L/min
