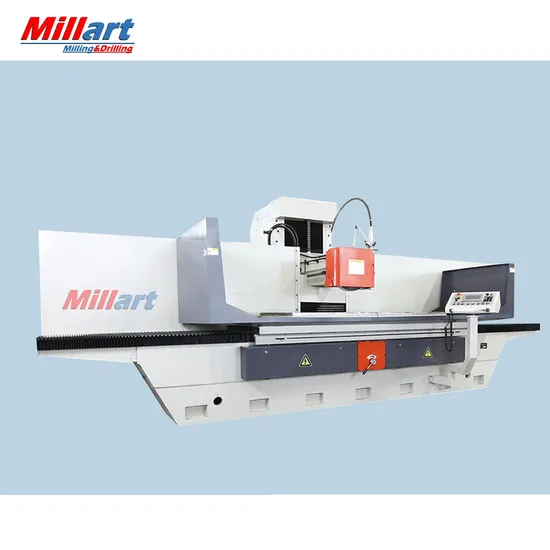

Column Mobile Program-Controlled Surface Grinding Series Fsg80160nc Fsg80220nc Fsg80300nc, Surface Grinder

Product Description

Product description:
Technical parameter :
Feature :
Double walled column structure, provide high rigid support .Adopt counterweight balance, make the spindle move stably, and reduce the load of the leadscrew , keep the accuracy for a long time.
Independent,large capacity integrated hydraulic tank,standard equipped with air cooling and pressurizer,isolate heat and vibroseis, to provide excellent power for precision grinding.
High rigidity rectangular guide way is designed on vertical motion,and coat with TURCITE-B belt,to get low friction coefficien
Flat-V guideway are adopt on longitudinal and cross way to get good guidance quality,and coat with TURCITE-B belt,precision handscraping to keep stable wok accuracy
AC servo motor drives on cross and vertical motion MPG(electronic hand wheel )replaces the tradition mechanical hand wheel, which can realize higher accuracy and easy operation
Adopt SIEMENS 7 inch LCD-TFT colorful touch screen, built in program of our engineer's genius designation to make the operation very simple and convenient for the operator.
Adopt hydrostatic bearing for the spindle to get high rigidity(high precision rolling bearing foe export),together with 18.5KW motor to provide strong power, apply to the heavy duty machining. Spindle rotation is supported by rigidity oil film, no wear, ensure the long-time precision and life
Well designed machine bed is one high grade casting piece, which insure heavy duty cutting
Strengthen ribs are set inside of the rear slide base,make sure great stability support for spindle.
Super great power spindle unit is most important to the machine.It is really an elaboraton under well designed,and our ultimate goal is to balance high rigidity and great accureacy.
The machine bed and rear slide bed are assembled to one piece,to supply super strong base for efficient working.
Specification:

MODEL		Unit	FSG80160NC	FSG80220NC	FSG80300NC
Table size(W x L)		mm	810x1600	810x2200	810x3000
Max longitudinal travel		mm	1600	2200	3000
Max cross travel		mm	810	810	810
Max distance from spindle to table		mm	670(830/1000 Optional)	670(830/1000 Optional)	670(830/1000 Optional)
Electro magnetic chuck size		mm	800x800/2pcs	800x1000/2pcs	800x1000/3pcs
Speed of table longitudinal movement		m/min	5-25	5-25	5-25
Wheelhead cross movement	Auto feed	mm/min	1-30	1-30	1-30
	Rapid speed	mm/min	50-2000	50-2000	50-2000
	Feed of handwheel	Mm/div	0.005	0.005	0.005
Wheelhead vertical movement	Auto feed	mm	0.005-0.05	0.005-0.05	0.005-0.05
	Rapid speed	Mm/min	50-2000	50-2000	50-2000
	Feed by handwheel	Mm/div	0.005	0.005	0.005
Grinding wheel	Speed	rpm	960(50Hz) 1150(60Hz)	960(50Hz) 1150(60Hz)	960(50Hz) 1150(60Hz)
	Size	mm	500x75x203	500x75x203	500x75x203
Spindle motor		kw	18.5	18.5	18.5
Max loading capacity of table		Kg	2000	2400	3500
Gross weight		kg	10500	12500	14000
Package dimensions(L x W x H)		mm	4800x2270x2390	6000x2270x2390	8200x2270x2390

Standard accessories :
Wheel flange
Balancing arbor
Wheel exactor
Coolant tank
Working lamp
Tools box and tools
Wheel dresser stand
Standard electro magnetic chuck
Leveling wedge and bolt
Built in electro magnetic chuck controller
PLC auto grinding controller only for AHD models
Optional accessories :Dust collect
Balance stand
Wheel flange
Coolant tank with magnetic separator
Coolant tank with paper filter
Coolant with magnetic separator and paper filter
Parallel wheel dresser screw rod type
Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
