Basic Info.
Machining Process
Vibrating Mixing
Vibrating Amplitude
1.2mm
Certification
ISO9001: 2000, CE
Batching Control Meter
Made in China
Connecting Cable and Accessories
Made in China
Cement Silo
100t/150t/200t/300t
Hoisting Mixer System
Discharge Height 4.2m
Aggregate Hoisting and Measuring System
Made in China
Aggregate Feeding Type
Belt Conveying Type
Concrete Mixer Power
90 - 215.5kw
Name
Ready Mix Concrete Plant
Control System
Siemens PLC+PC
After-Sales Service Provided
Field Installation, Commissioning and Training
Transport Package
Naked in Container
Production Capacity
5000PC/Year
Product Description

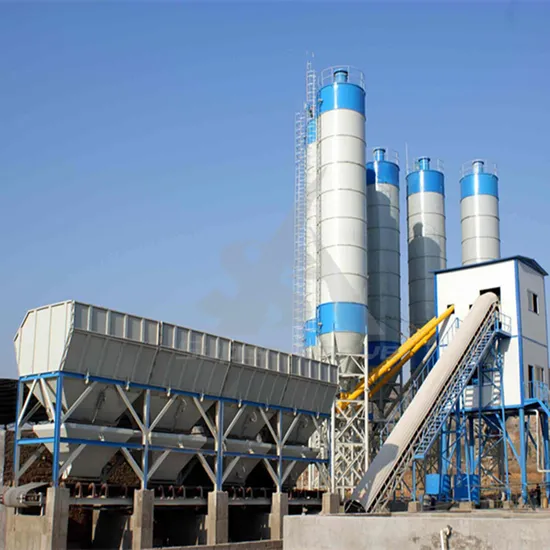

Product Detail HZS180 Ready Mix Precast Concrete Equipment 180m3/h
HZS Series Concrete Mixing Plant: Stable JS series mixer
Aggregate hopper:Seperate weinghing system,quite precise
Aggregate conveyor:Flat belt conveyor
Control system: Double controling computer, branded hardware,stable and easy to operate .
HZS180,apply JS 3000 mixer,it can well fulfill the need of road ,bridge ,dam and marine construction.With the combination of our rich experience and European teconology.Xin Da machinery has gotten a good reputation at home and abroard.The controlling system applies Siemens(PLC) and other branded hardware ,which help the operation be quite efficient and stable.
Meanwhile ,the weighing system is pricise,it helps the production of cement go on well.
HZS180 Ready Mix Precast Concrete Equipment 180m3/h Main Parameter
Models
| HZS180
|
Production(m3/h)
| 180
|
Mixer
| Models
| JS3000
|
Mixing power(kw)
| 2*55
|
Output capability(m3)
| 3
|
Aggregate size(mm)
| ≤150
|
Hopper
| Hopper capacity(m3)
| 20
|
Hopper quantity
| 4
|
Conveyor capability(t/h)
| 600
|
Scope and precision of weighing
| Aggregate(kg)
| 7000±2%
|
Cement(kg)
| 1800±1%
|
Water(kg)
| 800±1%
|
Admixture(kg)
| 30±1%
|
Total power(kw)
| 172
|
Height of discharge(m)
| ≥3.9
|
