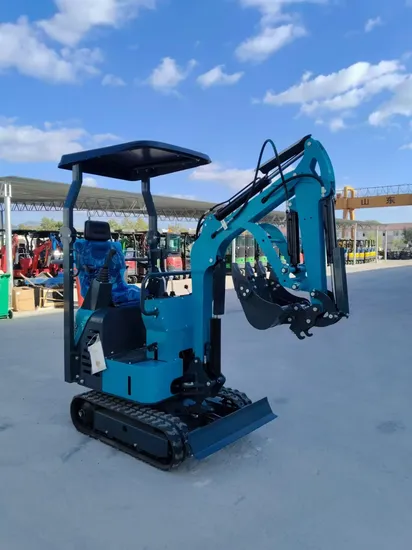

Best Price Excavator Mini 1 Ton Excavator 1.8 Ton Excavating Excavador

US$2,000.00-2,500.00 1 set (MOQ)

Basic Info.

Model NO.
TE10
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000, SGS
Condition
New
Operation Weight
1000kg
Engine Model
Koop/Kd192f
Power
7kw/3000rpm
Swing Speed
0-13r/min
Traveling Speed
2km/H
Traveling Tracking Force
8.3KN
Bucket Digging Force
7.2KN
Arm Digging Force
4.6KN
Hydraulic system working pressure
16MPa
Hydraulic Pump
gear pump
Hydraulic pump flow
18L/min
Fuel Tank Capacity
26L
Overall Length
2840mm
Overall Width
880mm
Overall Height
2200mm
Transport Package
Nude in Container
Specification
2200/930/2250mm
Trademark
TITAN
Origin
Shangdong China(Mainland)
HS Code
84295100
Production Capacity
1000 Sets One Year

Packaging & Delivery

Package Size
290.00cm * 110.00cm * 176.00cm
Package Gross Weight
1000.000kg

Product Description

Best Price Excavator Mini 1 Ton Excavator 1.8 Ton Excavating Excavador
Product Description
Main Features Small size and easy to transport, could be loaded onto light truck or small trailer, six sets could be loaded into one 20GP container to save freight cost. Famous brand hydraulic system parts ensure the stable quality. boom deflection design meet narrow work condition, reinforced rubber track to protect road extend hydraulic line for various attachments. comfort seat make operator easy to work. Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, papermaking factory etc. and could replace 4~5 manpower.
Engine
Model KOOP KD192F-1, 7kw/3000rpm EURO V Emission
Type Direct injection, wind cooled, natural intake
No. of cylinder 1

Main Performance
Main Speed r/min 0-13
Traveling Speed km/H 2
Grade ability KN 30°
Traveling Tracking Force KN 8.3
Bucket Digging Force KN 7.2
Arm Digging Force KN 4.6
Hydraulic System
Hydraulic system working pressure Mpa 16
Hydraulic Pump Gear Pump
Hydraulic pump flow L/min 18
Fuel Tank Capacity L 26
Hydraulic Tank Capacity L 14.5 in Hydraulic tank 21.5 in Hydraulic system
Overall Dimensions
Overall Length mm 2840
Overall Width mm 880
Overall Height mm 2200
Counterweight Ground clearance mm 385
Axle Base mm 900
Track Width mm 180
Undercarriage Width mm 840
Undercarriage ground clearance mm 132
Operation Paramters
Operation Weight KG 950
Bucket Capacity 0.023
Max. Digging Radius mm 3065
Max. Digging Depth mm 1715
Max. Diiging Height mm 2600
Max. Dumping Height mm 1830
Tail Swing Radius mm 800

Attachment
Packing&Shipping
Application
TL10E excavator with compact design, it is suitable to be used for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse.
OUR SERVICE
Pre-Sales Service
(1) Inquiry and consulting support.
(2)Sample testing support.
(3)View our Factory.
After-Sales Service
(1)Training how to instal the machine, training how to use the machine.
(2)Engineers available to service machinery overseas.
FAQ
Q:Why choose Titan?
1) Titan: an experienced loader manufacturer with over 11 years.
2) Titan TEAM: customers-focused,you'll get reply within 5 minutes.
3)Titan: premium quality with reasonable price.
4) Titan: CE,BV,SGS,ROPS and FOPS,ISO9001:2008 varified.
Q:What is Titan warranty?
1) Titan after-sales: life-long, meantime offer one year and one month warranty.
2) Titan proposal: order some wearing parts with loader for easy maintenance.
Q:What about Titan delivery term?
10-14 days after down payment received.
Q:What about the payment term?
30% advance payment,70% balance by T/T.
