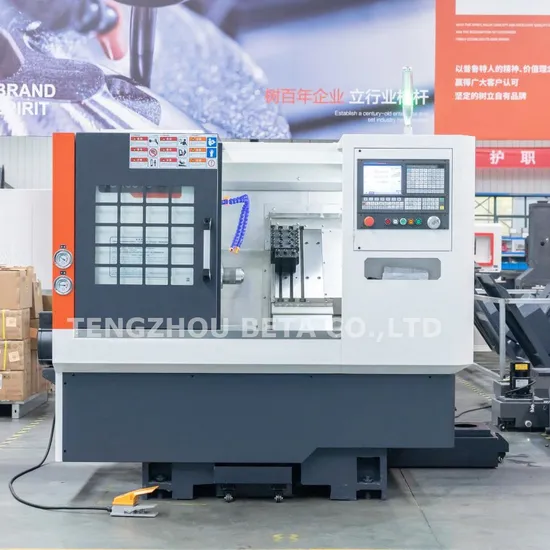

China Small Precision Bar Feeder Slant Bed CNC Turning Lathe for Metal

US$20,000.00
1-4 Sets
US$16,000.00
5+ Sets

Basic Info.

Model NO.
TCK6340S
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Turret, Gang Tools
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Slant Bed CNC Turning Lathe
Max.Swing Over Bed
400mm
Max.Processing Length
300mm
Tool Post Type
Gang Tools CNC Lathe
Spindle Motor
5.5kw Servo Motor
Chuck
Manual Chuck
Voltage
380V
OEM
Available
MOQ
1 Set
Delivery Time
1 Month
X Axis Travel
400mm
Z Axis Travel
500mm
Spindle Nose
A2-5
Slant Bed
45 Degree Slant Bed CNC Lathe
Guideway
Taiwan Linear Guideway
Transport Package
Wooden Case
Specification
500mm diameter seal
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month

Packaging & Delivery

Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
2500.000kg

Product Description

Slant Bed CNC Lathe Machine TCK6340, TCK6040S (Linear guideway, Without tailstock)
Standard accessories:
45 degree slant bed structure,
GSK CNC controller,
Spindle motor 5.5kw servo,
Taiwan linear guide ways,
A2-5 spindle unit 140 with maximum speed 3500rpm,
6" hollow type hydraulic collet with cylinder,
Gang type tools 4 pieces,
automatic lubrication system,
automatic cooling system,
work light
Full protection cover
Optional accessories:
Siemens/Fanuc CNC controller
Hydraulic turret
Servo Turret
Electric turret

Model Unit TCK6340S
Swing over bed mm 400
Swing over cross slide mm 140
Max processing length mm 300
X axis travel mm 400
Z axis travel mm 500
Spindle nose A2-5
Spindle bore mm 56
Bar capacity mm 45
Max spindle speed rpm 3500
Spindle motor kw 5.5 servo
X/Z axis repeatability mm 0.005
X/Z axis feed motor torque N.m 6/6
X/Z rapid traverse mm/min 18/15
Tool post type Gang type tools
Cutting tool shape size mm 20*20
Guide way type 45 degree slant bed
Total power capacity kVA 9/11
Overall dimension mm 2390*1530*1780
Weight kg 2600/2800
