Small Pellet Making Machine Line Biomass Pellet Mill

Product Description

Product Description

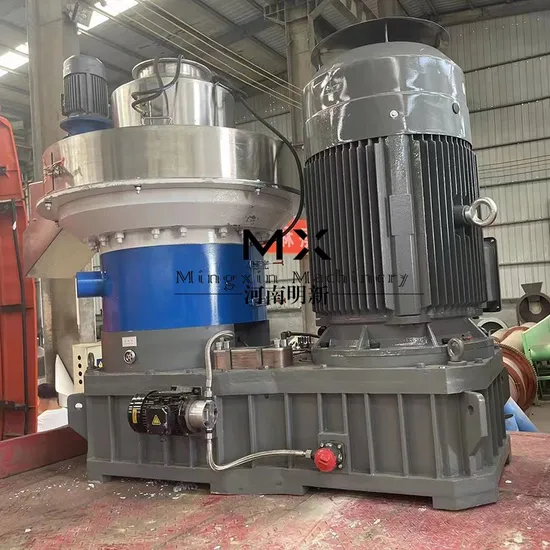

Small pellet making machine line biomass pellet mill
Biomass pellet machine is a kind of biomass energy pretreatment equipment. It mainly uses agricultural and forestry processing waste such as wood chips, straw, rice husk, bark and other biomass as raw materials, and solidifies it into high-density pellet fuel through pretreatment and processing. Biomass pellet machine is divided into flat die biomass pellet machine and ring die biomass pellet machine.

Model	Power(kw)	Capacity(kg/h)	Final size	Oversize(mm)
450	55+1.5+0.37+0.55KW	0.7-1.2t/h	2-12mm	2200*900*1600
550	75+1.5+0.37+0.55KW	0.8-1.3t/h	2-12mm	2600*1300*2300
560	90+1.5+0.37+0.55KW	1-1.5t/h	2-12mm	2600*1300*2300
680	132+1.5+0.37+0.55KW	2-2.5t/h	2-12mm	3200*1400*2400
850	220+2.2+0.37+0.55KW	2-3t/h	2-12mm	/
850A	220+2.2+0.37+0.55KW	2.5-3.5t/h	2-12mm	/
880	315+3+0.37+0.55KW	3-4t/h	2-12mm	/

Advantage:
1. Feeding vertically, free of arch of the raw materials, easy for the heat emission in pelleting room.
2. Ring die with double layer, up and down dual use,reducing production cost.
3. Die fixed while rollers rotating, producing much higher presion, and materials are centrifugal,evenly distributed around, improving production capacity and also assuring pellets hardness and density.
4. With automatic lubrication system,easy maintenance,reducing cost, prolonging working life of the equipment.
5. 24 hours continuous operation, saving labour. Application
1. Use Wood Chipper, Wood Crusher to make wood logs, chips (or other materials) smaller. 2. Use Dryer (rotary drum dryer / Air-flow dryer) or add water to the sawdust(or other materials) till its moisture content between 8-15%, which is the best moisture content for pelletizing. 3. Put the sawdust into the pellet machine gradually. Large scale pellet production need a screw feeder to make sure stable feeding of raw material. 4. After pelletized, the pellets are of high temperature that is not suitable for direct packing. So they should be cooled by pellet cooler. Then, pellets go through a vibrating sieve, where good pellets will be left, while broken ones or powder will be collected for reproduction. 5. After all the above procedures, pellets can be packed with a pellet packing machine.
Raw Material
Rice husks, sunflower seed husks, peanut shells, and other melon and fruit husks; branches, bark and other wood scraps; various crop straws, such as: wheat straw, corn straw, reed straw, rice straw,cotton Rods, etc.; various chemical raw materials such as rubber, cement, ash and slag.
1. Raw materials diameter requirement: 3-5mm(If large ,crusher machine should be used)
2. Raw materials moisture: 15-25%.(If beyond the scope,dryer machine should be used )
The main purpose
1. Civil heating and domestic energy consumption: high fuel utilization rate and easy storage;
2. Biomass industrial boilers: as the main fuel for industrial boilers, they can replace coal and reduce air emissions and pollution;
3. Power generation: it can be used as fuel for thermal power generation. Product Parameters
1-The motor is vertically installed on the machine base, so the machine is more stable and there is no shaking during operation.2-The gearbox is set on the machine, connected with the motor shaft and the vertical shaft of the machine, and efficient power transmission.3-Machine vertical structure, easy material feeding, suitable for biomass particle manufacturing
Packaging & Shipping
Inner packing: we can use plastic packing if the client needs
Outer packing: usually wooden case or the container
We can also pack the machine according to the client's need.
Delivery method: by sea
Delivery time: We respect the contract, and will deliver the goods on time as agreed for customized order. For normal products, we have stocks for immediate delivery.
Company Profile
Henan Mingxin Machinery Co. Ltd is a company that integrates science,industryand trade. The company mainly sells mechanical equipment and accessories, pipeline equipment,refractorymaterials, abrasive materials, water purification equipment, wire and cable. Our company follows thehuman-oriented, honest, pioneering entrepreneurial spirit with scientific and technological innovation.We have always regarded the technology as the motive force, the market as the orientation to makethe products first-class.
Our company insists on the professional development based on the principle of innovation and honesty. We win the market with our advanced skills, high-quality products and considerate services.The products in our company have been exported to the South Africa, Pakistan, Vietnam and other counties with the advanced technology, reliable quality and reasonable price. We have also got the good reputations from customers at home and abroad.
FAQ
Q: How about the quality of your products?
A:We put the quality in the first place based on the honesty. Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before the delivery.
Q: How about the price?
A: We pursue small profits but quick turnover, and we can give you lower price than other trading companies. If the product is really suitable and can benefit you, the price is negotiable.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to solve your problems promptly and thoroughly.

---
