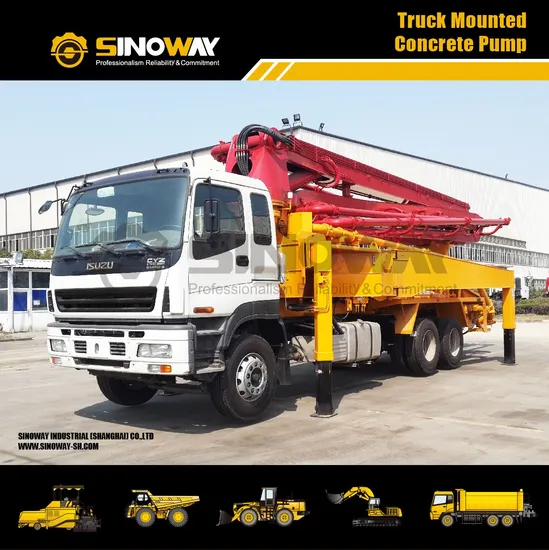

46 M Concrete Pump Truck, Truck Mounted Concrete Truck

Product Description

Four-axle chassis and 46m placing height
Maximum nominal output compared with other products with 4-axle chassis: 170m3/h output
Lightest weight compared with other products with similar boom: 32.8t of gross weight
Sinoway 46 m truck-mounted concrete pump also has the following advanced technologies:
Construction Machinery Energy saving Technology Award: The First Prize of 2008' Hunan Provincial Science and Technology Progress, Roll-over Protection Control Technology
advanced control system is more friendly interface, better anti-disturbing capacity, faster running speed, large working temperature range (-40° C+80° C), and IP67 protective degree.
Patented Boom Vibration Control Technology
Our hydraulic system with electro-hydraulic proportional cushion technology has automatic filtrate function, higher hydraulic oil filtration, lower temperature and smooth reversing.
Sinoway treat Service as a significant segment in our value chain, from the moment you get in touch with Sinoway, our commitment to service is a complete guarantee that we will make every effort to be there for you. That is our pledge to you. We wish to not just satisfy but surpass the expectations of our customers.

Condition	Brand new
Warranty	One year or 2000 working hours,whicheveris earlier
Shipment Term	FOB, CFR, CIF, CIP, DAF

Dead weight		32800kg
Vertical reach		46.0m
Horizontal reach		41m
Reach depth		28.8m
Unfolding reach		13.4m
1st section	Length	9255mm
	Articulation	90°
2nd section	Length	7060mm
	Articulation	180°
3rd section	Length	6890mm
	Articulation	180°
4th section	Length	9220mm
	Articulation	240°
5th section	Length	9580mm
	Articulation	240°
Rotation		360°
Outrigger spread L-R-Front		8820mm
Outrigger spread L-R-Rear		85400mm

---
