Versatile Milling Machine with Automated Features and Nt30 Spindle Precision

Product Description

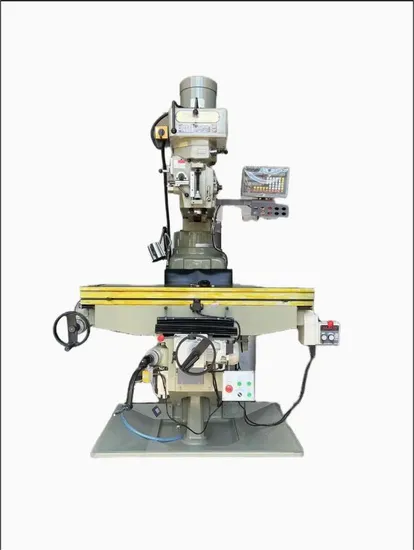

Introducing the exceptional 4s Vertical Lifting Table Milling Machine, a true masterpiece of engineering elegance, skillfully assembled in Taiwan. This state-of-the-art innovation is engineered to redefine precision and efficiency in metalworking, offering an unparalleled experience for those who demand nothing short of excellence.
Product Description
Mechanical CharacteristicCrafted with exceptional attention to detail using the superior Meehanna cast iron, this machine embodies extraordinary rigidity and steadfast stability. It guarantees long-lasting performance without deformation, ensuring robust and reliable operation that endures the passage of time.The spindle, fortified with an advanced combination of precision bearings, unleashes impressive cutting power and provides remarkable accuracy. This enhances the machine's machining capabilities, making it a true powerhouse of performance.Featuring an innovative inverted hanging design, the end milling head excels in delivering outstanding precision. Its user-friendly operation and convenient braking mechanism make it exceptionally easy to use. For those seeking customized features, tailored solutions are readily available to meet specific needs.The three-axis screw nuts are crafted from high-quality phosphorus meter copper, known for its excellent wear resistance. This ensures an extended operational lifespan, providing unwavering reliability and durability.The XY shaft slide is treated with advanced high-frequency annealing, significantly boosting wear resistance. This treatment prolongs the machine's operational lifespan, ensuring continuous top-level performance.An integrated lubrication system is seamlessly designed to ensure optimal sliding performance, maximizing both machine efficiency and longevity.
Product Parameters
1.Milling Machine Rotation Speed
Rotation speed is a crucial factor, directly influencing processing efficiency and cutting force. A higher rotation speed not only boosts cutting power but also enhances surface quality while reducing residual stress on parts, resulting in superior machining outcomes.
Milling Machine Cutting Speed Cutting speed is vital in determining both processing speed and quality. The ideal speed depends on factors such as material hardness, cutter material, and machine type, ensuring optimal results for diverse applications. Milling Machine Processing Accuracy Processing accuracy is a crucial performance metric, significantly affecting both machining precision and part quality. It is influenced by elements such as cutting force, machine and tool rigidity, workpiece clamping accuracy, and initial machine tool errors. Milling Machine Precision Stability Precision stability is essential for maintaining consistent machine accuracy during operation. It is influenced by initial tool errors, deformation of the machine tool, and tool wear, which are critical to maintaining quality.

Product Name
Product Name	Milling machine
Product model	4S
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	720MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	320MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-490MM
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	180° around / 45° front and back
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*65MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11, chuck	1

Detailed Photos
Packaging & Shipping
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments, requiring a 40% initial deposit upon ordering and the remaining 60% balance to be paid before shipment. This payment structure ensures a smooth transaction and timely processing of your order.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, giving you the freedom to choose the option that best suits your logistical needs and preferences.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we guarantee delivery within 30 days. For custom or specialized machines, additional time may be required. Please align your order placement with our provided delivery schedule to ensure timely receipt.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, ensuring accessibility for all customers. We also offer a comprehensive one-year warranty, reflecting our commitment to quality and customer satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case, guaranteeing it arrives in pristine condition, ready for immediate use upon receipt.
6. How can I choose the most suitable machines?
A: Provide us with your specific requirements, and we will recommend the most suitable model tailored to your needs. Alternatively, you may select your desired model directly from our extensive range of options.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for your specific applications, ensuring optimal performance and efficiency.

---
