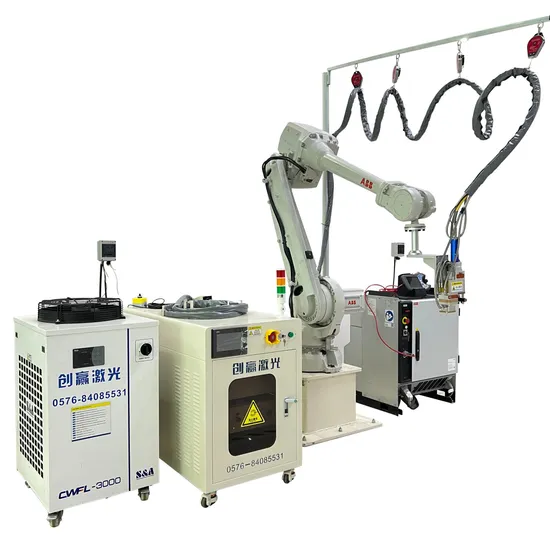

Chuangying Laser Quenching Equipment Mold DIP Fire Quenching Mold Local Fast Quenching Robot

Product Description

Product Description

How it works:
Laser quenching is a kind of high technology, which uses the focused laser beam to heat the surface of metal material quickly and make it undergo phase change to formHow it works:
Laser quenching is a kind of high technology, which uses the focused laser beam to heat the surface of metal material quickly and make it undergo phase change to form martensitic hardened layer.
Laser quenching technology solves many problems that cannot be solved by conventional heat treatment process, and has been widely used in metallurgy, automobile, mold, hardware, light industry, machinery manufacturing and other industries, suitable for heat treatment of various types of parts.
Application field:
Laser quenching technology can strengthen the surface of various molds, guides, large gears, cylinder walls, shock absorbers, rollers and other parts. The applicable materials are medium and high carbon steel and ductile iron. Detailed Photos

Product Parameters

MODEL	CY-3000W
Laser parameter
output power W)	3000
work model	continuous
polariszation	at random
power adjustment(%)	10~100
wave length(nm)	915±10
output unstablility(%)	<3
Rate(Hz)	50~5k
red light point power(mW)	0.25~1
laser head parameters
output head mode	QBH
fiber core(μm)	600
Min bend semidiameter(mm)	≥400
Half angle of beam divergence(rad)	≤0.22
fiber length(m)	20
electronic parameters
Voltage	AC380V±38V,50/60Hz,
control mode	RS-232/AD
other parameters
size (W×H×D)(mm)	650×950×980
weight(Kg)	<150
temperature(ºC)	10~40
Hunidity(%)	<70
storage(ºC)	-10~60
Cooling	Water cooling
Power consumption	22KW

Processing product renderings
