Plastic 1L Small Bottle Extrusion Blow Molding Machine for Plastic Light Resistant Bottles

Product Description

plastic 1L small bottle extrusion blow molding machine for plastic light resistant bottles
Model: Q3000

Item		Q3000
Bottle type specification	Cavity	2
	Theory output	3000-3500
	Max. Volume	2L
	Bottle mouth maximum overall diameter	80mm
	Bottle biggest diameter	100mm
	Bottle maximum height	330mm
Power specifications	Light tube quantity	32PCS
	Light tube power	0.75KW
	Maximum heating power	24KW
	All electric machine installation	27KW
	Actual consumption	19KW
Air pressure specification	Work pressure	7-9kg/cm2
	Low-pressure gas consumption	1000L/min
	Blow bottle pressure	25-35kg/cm2
	Higher -pressure gas consumption	1500LTR/min
Frozen water specification	Work pressure	5-6 kg/cm2
	Temperature range	10ºC
	Consumption	5000kcal/hr
	Frozen water flow	30L/min
Machine specification	Size of the machine	2.6X1.9X2.2
	Weight of the machine	2.5ton

Feature:
A. Advanced PLC control system, stable and excellent performance.
B. Conveyor belt automatically feeds preforms.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the
Infrared pre-heater.
D. High adaptability, preform absorbs heat by adjusting the distance between lamp and reflector. With automatic constant temperature device, temperature is kept within a certain range.
E. Safety locks are provided during each mechanical action to protect operator's safety.
F. Use cylinder instead of hydraulic cylinder, low pollution, low noise.
G. Use different air pressure for blowing and machine operation, energy saving and environmental protection.
H. Equipped with high pressure and double-crank linkage clamping, providing high clamping force.
I. Two ways of operating: Automatic and manual.
J. Safe, reliable, unique valve position design makes blowing process easier to control
K. Low-cost, high-efficiency, easy-to-operate, easy-to-maintain, advanced automatic process flow.
L. Avoid bottle contamination
M. Protection of low temperature cooling system
N. Easy to install and start
O. Low scrap rate

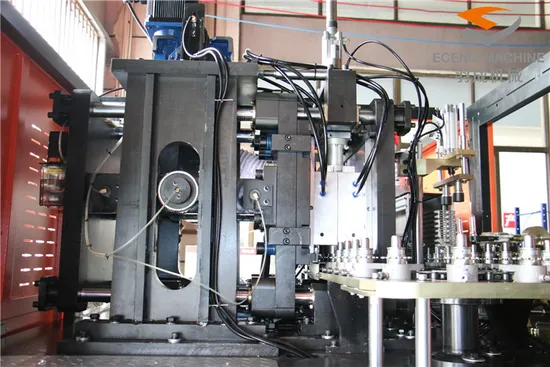

Q3000
Fully automatic, low investment, high efficiency, easy operation, simple maintenance and safety.
Servo transmission system, high positioning accuracy, fast speed and stability, good reliability. Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement; Adopt high pressure and double crank arm link locking, strong clamping force.
Auto-loader improves working efficiency, accurate transportation, reliable and durable, raw materials are completely free of moisture, pollution, foreign matter, and loss during feeding process. Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; Heating lamp, reflector width and height can be adjusted to suit preform heating of different structure, with automatic temperature-removal device to ensure the constant temperature of oven.
Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance, manual type and fully automatic type.
FAQ:
Q1: Are you a trading company or a manufacturer?
A1: We have our own factory for 10 years, will try our best to provide you service.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee. We will give u spare part free in 1 year,
Life long after service. Mean while, our engineers can go to your factory assist you installing and testing machine to normal working condition. We also have a technical team support for after service.
Q3: When can I get my machine after I paid?
A3: We will deliver the machines on time as the date we agreed both side.
Q4: How can I install my machine when it arrives?
A4: We will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines.
Q5: What's the delivery time?
A5: 45 days after the T/T deposit or L/C.
Q6: Where is your factory located?
A6: Our factory, near Shanghai & Ningbo port, is located in Zhangjiagang, Jiangsu.
Q7: How about quality control in your factory?
A7: " Quality is the key point, do what customers need"
Eceng machinery factory focuses on quality, quality control from beginning to the end. Every piece of goods is tested strictly before packing and delivery.
Q8: Do you provide bottle blow mould and air compresor?
A8: Yes, we provide complete system and you will no need to find the suitable air compressor and chiller...etc...
Q9: What is the language of the PLC and touch panel?
A9: Don't worry, we will translate the language in English, Spanish or any other language, to make sure you will have an easy operation.
Q10: Do you have reference project?
A10: We have reference project in most countries, If we get the permission of the customer who has brought the machines from us, we can tell you their contact information, you can go to visit their factory.
And you are always welcome to come to visit our company, and see the machine running in our factory, we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine
Q11: Do you have agent and after-service stations?
A11: So far we have agent in Thailand, Vietnam, Columbia, Indonesia. Welcome to join us!
Q12: Do you provide customized service
A12: We can design the machines according to your requirements(material, power, filling drink, different bottle neck and bottle design, logo design and so on), give you suggestions for your unique needs.
Warmly welcome to visit our factory!
Contact: Zoe xu

---
